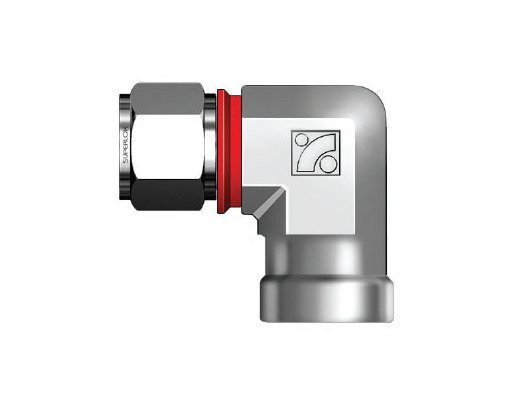

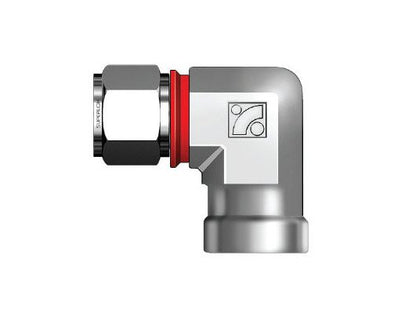

SFEI Series 10mm Tube Female Elbow with 3/8in Thread
SFEI Series 10mm Tube Female Elbow with 3/8in Thread
SKU:SFE-9919aa
Seamlessly connect metric tubes to male ISO tapered threads with the SFEI Series 10mm Tube Female Elbow for enhanced safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFEI Series 10mm Tube Female Elbow with 3/8in Thread
$29.99
Quantity: 1
Claim Your Seller Account
SFEI Series 10mm Tube Female Elbow with 3/8in Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFEI Series 10MM Tube Female Elbow with 3/8in Thread is designed to seamlessly connect metric tubes to male ISO tapered threads. Crafted from a range of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this female elbow ensures durability and reliability in diverse applications. Featuring the patented i-Fitting® components, it enhances installer safety, productivity, and cost-efficiency, making it ideal for high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

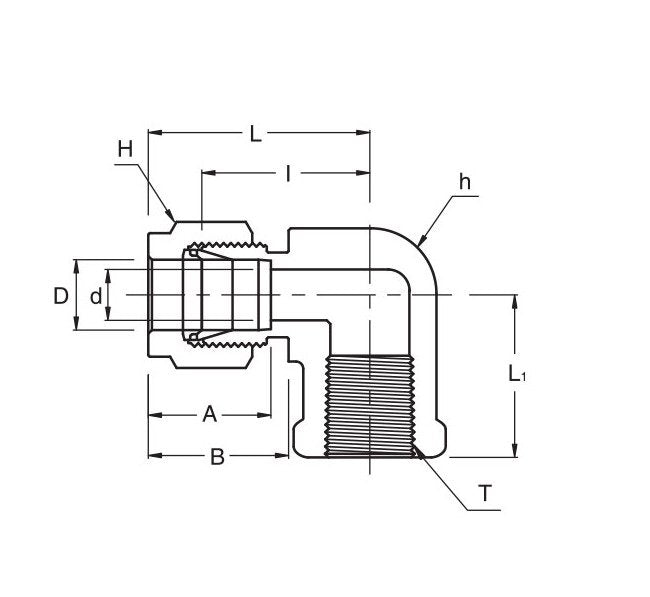

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
33.5 mm
Technical Specs Dimension L1
22.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
