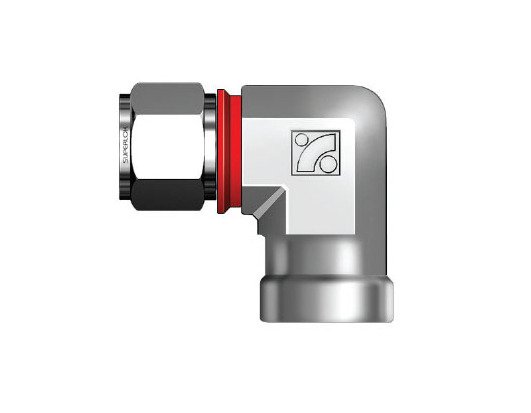

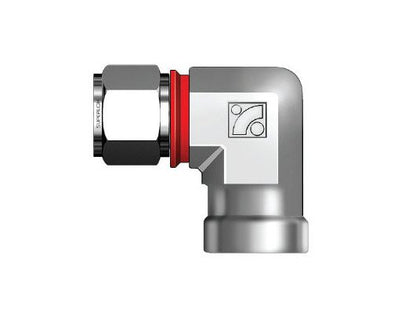

SFEI Series 3/4" Female Elbow NPT Connector
SFEI Series 3/4" Female Elbow NPT Connector
SKU:SFE-76b82d
Connect fractional tubes to NPT threads securely with the SFEI Series 3/4" Female Elbow, featuring patented i-Fitting® components for safety and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFEI Series 3/4" Female Elbow NPT Connector
$29.99
Quantity: 1
Claim Your Seller Account
SFEI Series 3/4" Female Elbow NPT Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFEI Series 3/4" Female Elbow is designed to connect fractional tubes to male NPT threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Stainless Steel, and more, this female elbow ensures superior performance in various chemical environments. The i-Fitting® components with a patented check ring design enhance safety by preventing over or under-tightening. Ideal for valve connections, this female elbow not only improves productivity but also reduces installation costs significantly.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

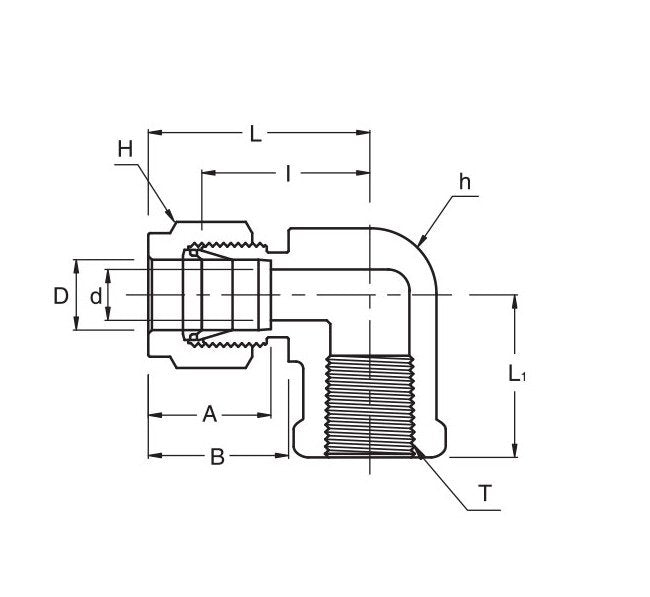

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
34.54 mm
Technical Specs Dimension L
44.70 mm
Technical Specs Dimension L1
31.75 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
