SFEI Series 6mm Female Elbow Connects Tube to Male Thread
SFEI Series 6mm Female Elbow Connects Tube to Male Thread
SKU:SFE-ddf132
Efficiently connect metric tubes to male threads with SFEI 6mm Female Elbow. Patented design ensures safety & productivity. Available in various materials.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFEI Series 6mm Female Elbow Connects Tube to Male Thread
$29.99
Quantity: 1
Claim Your Seller Account
SFEI Series 6mm Female Elbow Connects Tube to Male Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

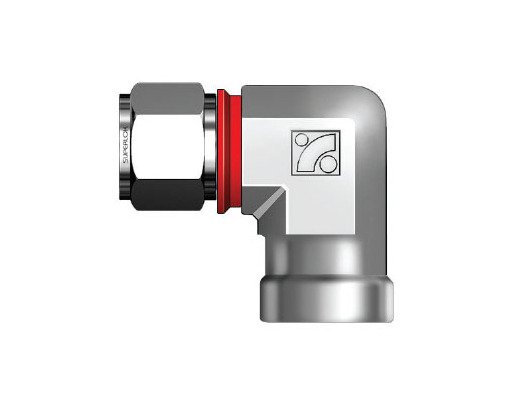

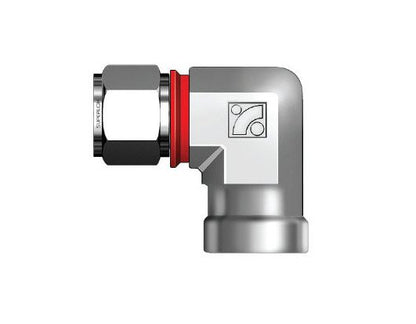

The SFEI Series 6mm Female Elbow is designed to connect metric tubes to male ISO tapered threads with precision and reliability. Crafted from a range of high-quality materials including Alloy 625, Stainless Steel, and Brass, this female elbow ensures durability and corrosion resistance even in high-pressure and chemical environments. With i-Fitting® components such as front and back ferrules, nut, and check ring, this patented design eliminates installation errors, enhances safety, and boosts productivity. Suitable for valve connections, this female elbow guarantees optimal compression, solving tightening issues and reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

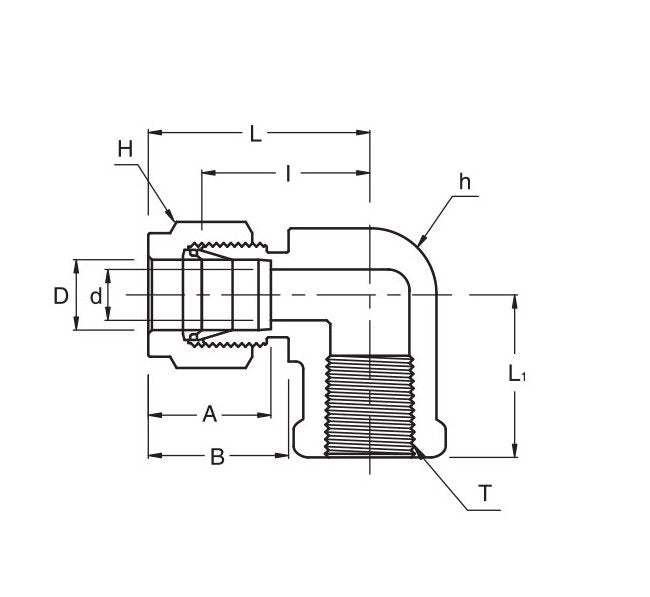

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
24.4 mm
Technical Specs Dimension L
31.7 mm
Technical Specs Dimension L1
22.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
