SFEI Series Female Elbow, 1/4" Tube OD x 1/8" NPT Thread, Alloy & Stainless Steel

Name: SFEI Series Female Elbow, 1/4" Tube OD x 1/8" NPT Thread, Alloy & Stainless Steel
Brand: Superlok-Mako Products LLC
SKU: SFE-1532e7
Price: 29.99 USD
Availability: OutOfStock

SKU:SFE-1532e7

Precision-engineered SFEI Series Female Elbow with patented safety features for optimal compression and efficiency.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

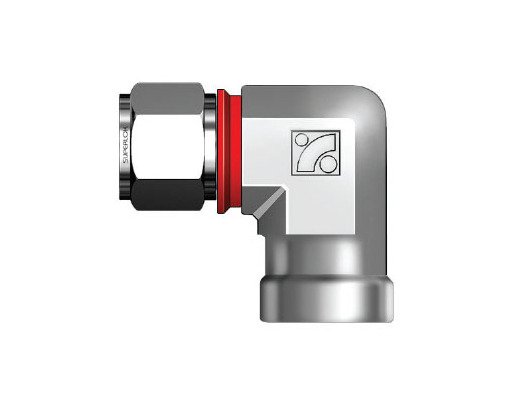

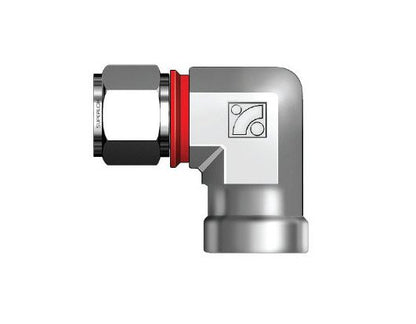

The SFEI Series Female Elbow is a precision-engineered connector designed to seamlessly join fractional tubes to male NPT threads. Crafted from durable Alloy and Stainless Steel materials, this female elbow boasts i-Fitting® components for enhanced safety, efficiency, and cost savings. Its patented check ring technology ensures perfect compression, solving tightening issues and increasing installer safety in high-pressure environments. Ideal for valve connections, this versatile female elbow complies with industry standards, providing reliability and performance in demanding applications.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

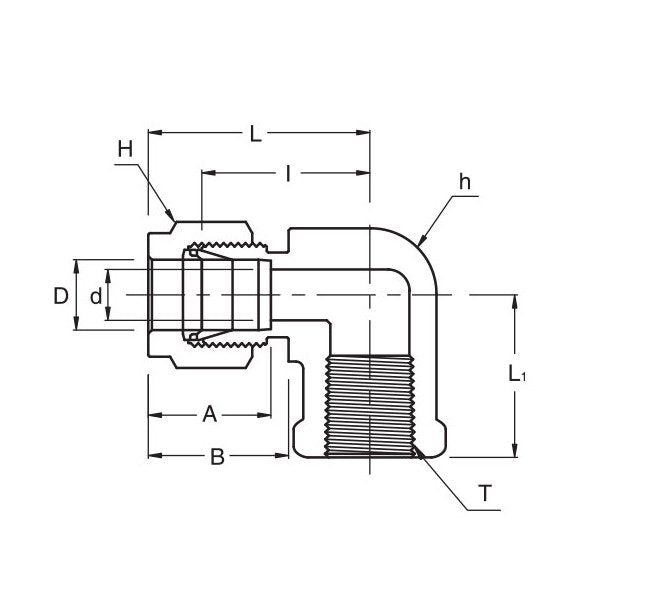

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

15.24 mm

Technical Specs Dimension B

17.78 mm

Technical Specs Dimension I

19.55 mm

Technical Specs Dimension L

26.92 mm

Technical Specs Dimension L1

19.05 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.82 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Thread Size T

1/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Tube Outside Diameter D

1/4 in

Technical Specs Width Across Flat H

9/16 in
