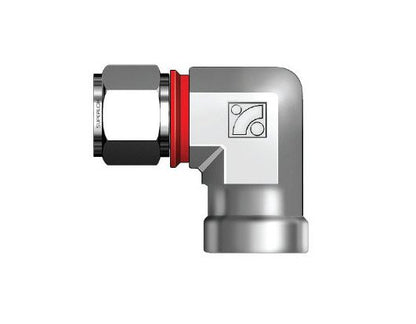

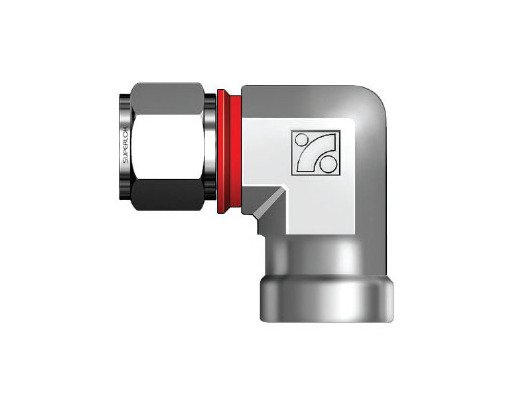

SFEI Series Female Elbow - 3/8" Tube OD, 1/2" Thread Size
SFEI Series Female Elbow - 3/8" Tube OD, 1/2" Thread Size
SKU:SFE-fd0033
Enhance connections with the SFEI Series Female Elbow - 3/8" Tube OD, 1/2" Thread Size. Industry-changer for high-pressure installations.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SFEI Series Female Elbow - 3/8" Tube OD, 1/2" Thread Size
$35.99
Quantity: 1
Claim Your Seller Account
SFEI Series Female Elbow - 3/8" Tube OD, 1/2" Thread Size
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFEI Series Female Elbow is designed to seamlessly connect fractional tubes to male NPT threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this female elbow ensures durability and reliability in various applications. Featuring the patented i-Fitting® design, it enhances installation safety, improves productivity, and reduces costs. With dimensions meeting industry standards and a built-in check ring for perfect compression, this female elbow is ideal for valve connections in high-pressure environments. Upgrade to the SFEI Series for efficient, industry-changing functionality.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

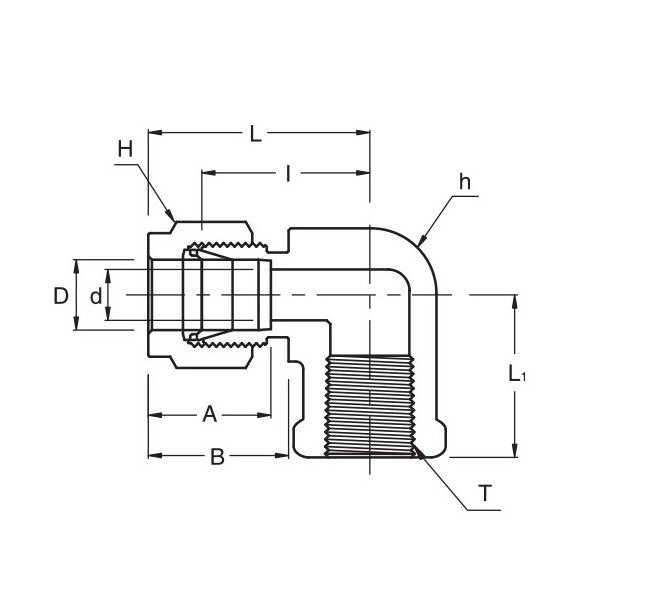

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
28.7 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Dimension L1
28.44 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
