SFRTI Series 1/2" Female Run Tee Fitting
SFRTI Series 1/2" Female Run Tee Fitting
SKU:SFR-858095
Precision SFRTI Series 1/2" Female Run Tee Fitting for secure and easy fractional tube to NPT thread connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFRTI Series 1/2" Female Run Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SFRTI Series 1/2" Female Run Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

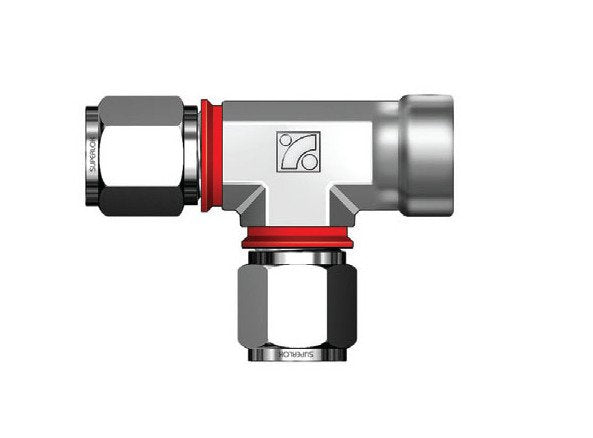

The SFRTI Series 1/2 inch Female Run Tee Fitting is designed to connect fractional tubes to male NPT threads. Made from a selection of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting features i-Fitting® components for precise installation. The patented check ring ensures perfect compression, enhancing safety in high-pressure environments while streamlining productivity. Ideal for valve connections, this fitting offers reliability and ease of use.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

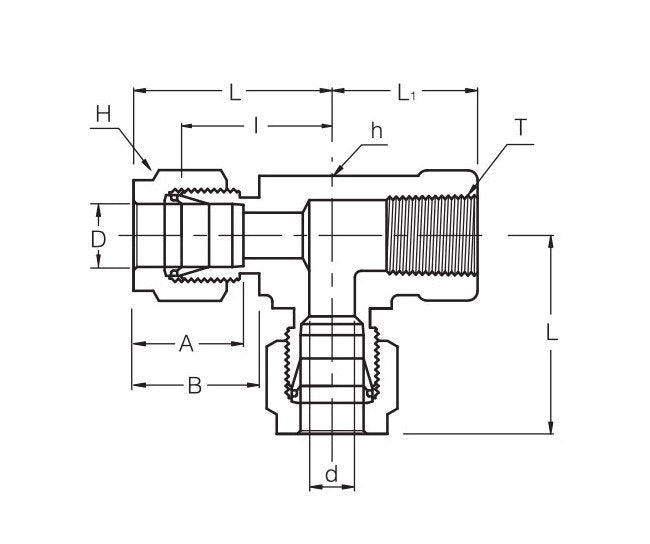

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
28.7 mm
Technical Specs Dimension L
39.87 mm
Technical Specs Dimension L1
28.44 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
