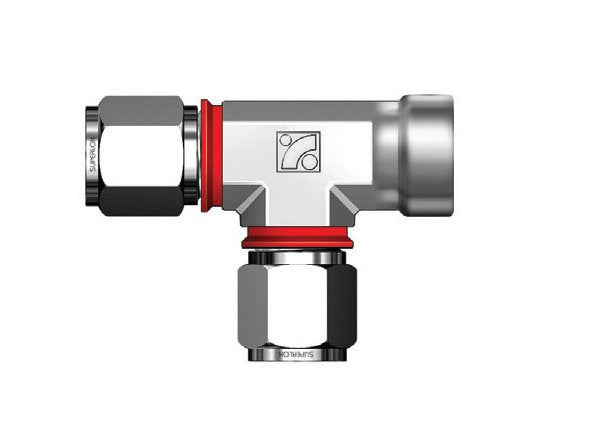

SFRTI Series 1/2in Tube OD & 3/8in Female Run Tee Fitting

Name: SFRTI Series 1/2in Tube OD & 3/8in Female Run Tee Fitting
Brand: Superlok-Mako Products LLC
SKU: SFR-42e404
Price: 29.99 USD
Availability: OutOfStock

SKU:SFR-42e404

Securely connect fractional tubes to male NPT threads with SFRTI Series Run Tee Fitting for enhanced safety and efficiency.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SFRTI Series Female Run Tee Fitting is designed to seamlessly connect fractional tubes to male NPT threads, ensuring secure and leak-free connections. Crafted from high-quality materials like Stainless Steel, Carbon Steel, and Aluminum, this fitting guarantees durability and reliability in various environments. The innovative i-Fitting® design, featuring a built-in gap gauge and enhanced safety features, sets it apart by preventing over-tightening and improving installation efficiency. Ideal for high-pressure and chemical applications, the SFRTI Series Fitting is a game-changer that enhances productivity while reducing costs.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

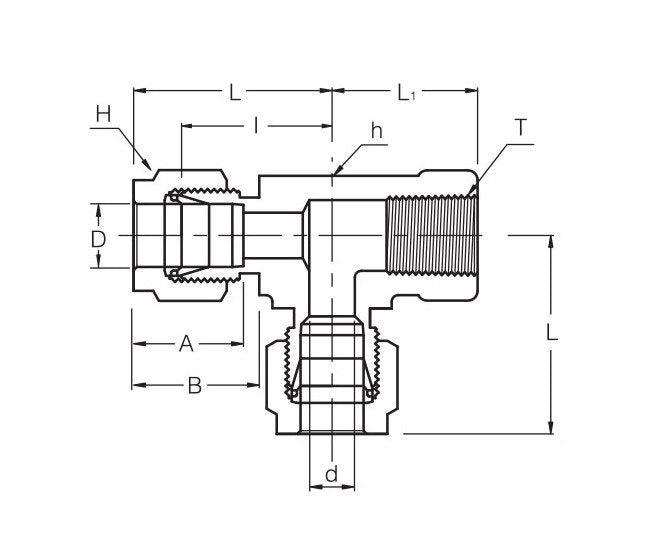

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

25.9 mm

Technical Specs Dimension L

36.06 mm

Technical Specs Dimension L1

22.35 mm

Technical Specs Material

Technical Specs Minimum Dimension D

10.41 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Thread Size T

3/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
