SFRTI Series 3/8in Tube OD x 1/4in Thread Female Run Tee Fitting
SFRTI Series 3/8in Tube OD x 1/4in Thread Female Run Tee Fitting
SKU:SFR-8bd5ce
High-performance SFRTI Female Run Tee Fitting for secure tube-to-thread connections, with built-in safety features and industry-leading design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFRTI Series 3/8in Tube OD x 1/4in Thread Female Run Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SFRTI Series 3/8in Tube OD x 1/4in Thread Female Run Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

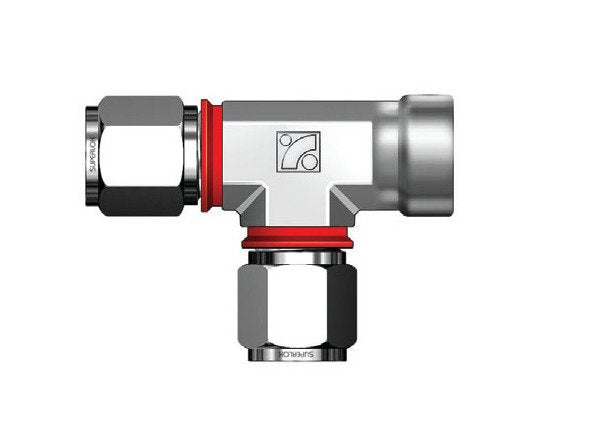

The SFRTI Series 3/8in Tube OD x 1/4in Thread Female Run Tee Fitting is designed to seamlessly connect fractional tubes to male NPT threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and stainless steel, this fitting ensures durability and reliability. Featuring the innovative i-Fitting® components like the built-in gap gauge check ring, it enhances installer safety, productivity, and reduces costs. Ideal for valve connections in high-pressure and chemical environments, this patented design by BMT sets new industry standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

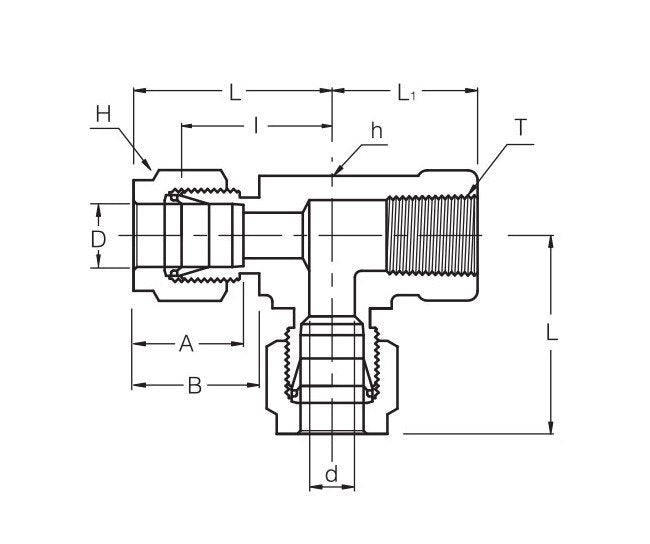

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.87 mm
Technical Specs Dimension L
31.24 mm
Technical Specs Dimension L1
22.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
