SFRTI Series 6mm Tube OD Female Run Tee Fitting
SFRTI Series 6mm Tube OD Female Run Tee Fitting
SKU:SFR-bd74a7
Innovative 6mm Tube OD Female Run Tee Fitting for secure and reliable metric tube to male ISO tapered thread connections, ensuring safety and precision.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SFRTI Series 6mm Tube OD Female Run Tee Fitting
$35.99
Quantity: 1
Claim Your Seller Account
SFRTI Series 6mm Tube OD Female Run Tee Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

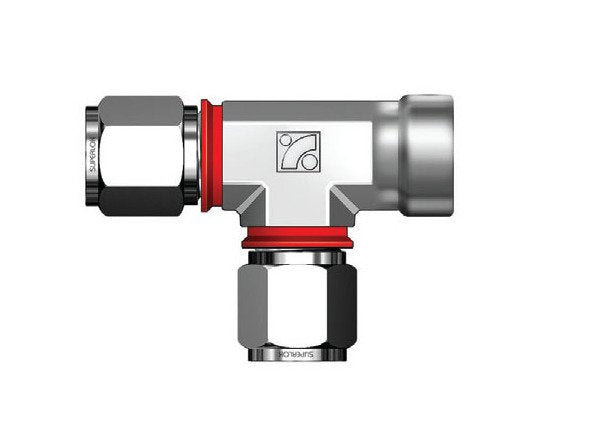

The SFRTI Series 6mm Tube OD Female Run Tee Fitting is designed to seamlessly connect metric tubes to male ISO tapered threads. Crafted from high-quality materials including Alloy 625, Alloy 825, Brass, Stainless Steel, and more, this fitting ensures durability and reliability in various operating conditions. Featuring the innovative i-Fitting® design with a built-in check ring for perfect compression, increased safety in high-pressure environments, and simplified installation, this fitting is a game-changer for valve connections. With dimensions engineered for precision and flexibility, the SFRTI Series meets stringent industry standards for performance and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

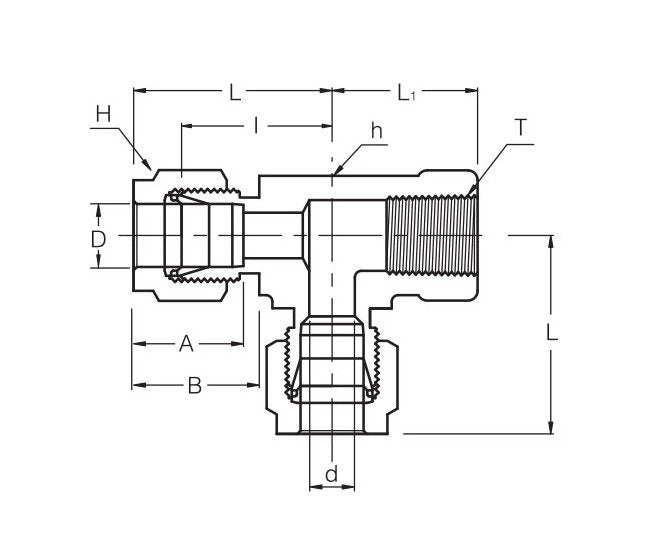

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
27.2 mm
Technical Specs Dimension L
34.5 mm
Technical Specs Dimension L1
28.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
