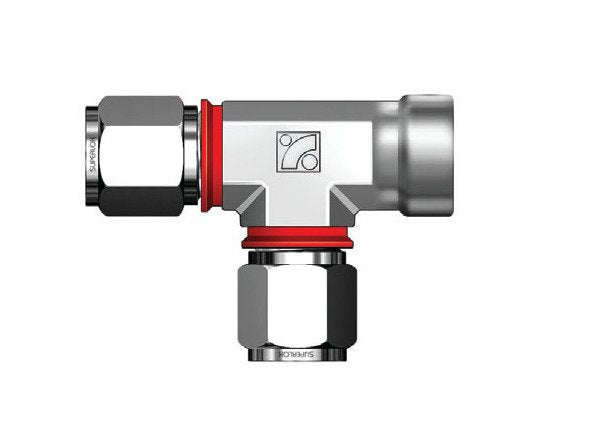

SFRTI Series 8mm Female Run Tee Fitting
SFRTI Series 8mm Female Run Tee Fitting
SKU:SFR-2c09e9
Reliable SFRTI Series 8mm Female Run Tee Fitting for metric tube connections with i-Fitting® technology for safety and productivity in high-pressure environments.
Regular price
$26.99
Regular price
Sale price
$26.99
Unit price
per
Initiate Order
SFRTI Series 8mm Female Run Tee Fitting
$26.99
Quantity: 1
Claim Your Seller Account
SFRTI Series 8mm Female Run Tee Fitting
$26.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFRTI Series 8mm Female Run Tee Fitting is precision-engineered to connect metric tubes to male ISO tapered threads with ultimate reliability. Made from high-grade materials such as Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and corrosion resistance. Its unique i-Fitting® components, including a built-in check ring for perfect compression, enhance safety in high-pressure environments. With dimensions designed for optimal performance and productivity, this patented design by BMT revolutionizes fitting connections. Ideal for valve connections and ensuring precise installations, it meets the demanding standards of industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

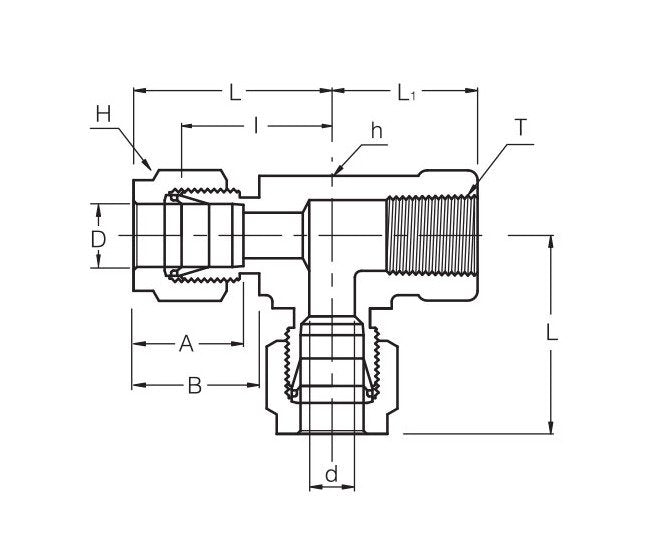

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
22.4 mm
Technical Specs Dimension L
29.9 mm
Technical Specs Dimension L1
19.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
