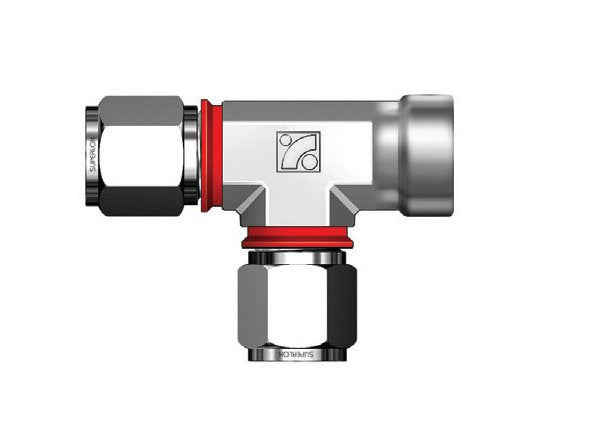

SFRTI Series 8mm Tube Female Run Tee Fitting
SFRTI Series 8mm Tube Female Run Tee Fitting
SKU:SFR-4e6847
Premium SFRTI 8mm Tube Female Run Tee Fitting - Patented i-Fitting® design for safety & efficiency. Ideal for valve connections.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
SFRTI Series 8mm Tube Female Run Tee Fitting
$25.99
Quantity: 1
Claim Your Seller Account
SFRTI Series 8mm Tube Female Run Tee Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFRTI Series 8mm Tube Female Run Tee Fitting is a premium solution for connecting metric tubes to male ISO tapered threads. Crafted from high-quality materials such as Alloy 625, 825, C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, and Stainless Steel, this fitting ensures exceptional durability and corrosion resistance. Its patented i-Fitting® design guarantees perfect compression, enhanced safety in high-pressure environments, and increased installation efficiency. Ideal for valve connections, this fitting meets stringent industry standards and is a reliable choice for institutional and government procurement.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

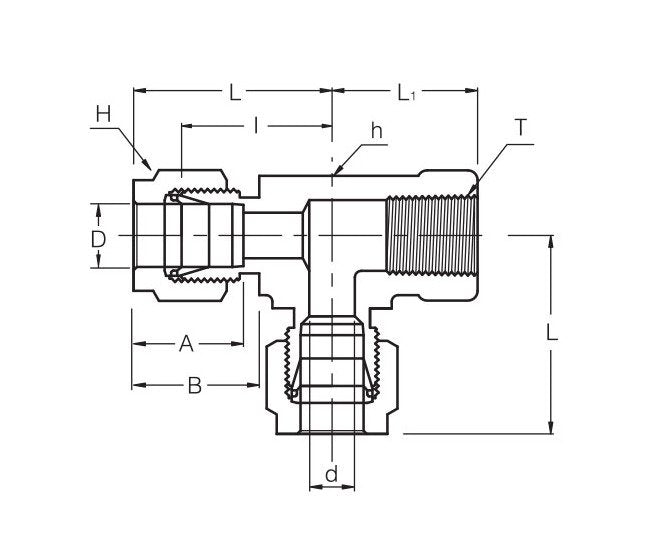

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
25.2 mm
Technical Specs Dimension L
32.4 mm
Technical Specs Dimension L1
22.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
