SFRTI Series Female Run Tee Fitting - 1/4in Tube OD, 1/8in Thread Size
SFRTI Series Female Run Tee Fitting - 1/4in Tube OD, 1/8in Thread Size
SKU:SFR-c76b89
Precision SFRTI Series Female Run Tee Fitting for secure fractional tube to male NPT thread connections in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFRTI Series Female Run Tee Fitting - 1/4in Tube OD, 1/8in Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
SFRTI Series Female Run Tee Fitting - 1/4in Tube OD, 1/8in Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

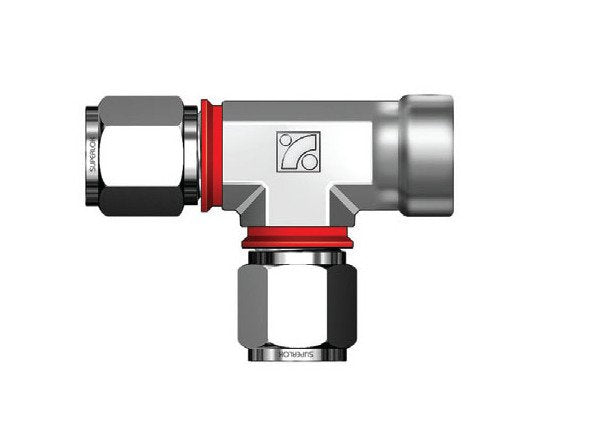

The SFRTI Series Female Run Tee Fitting is designed to connect fractional tubes to male NPT threads with precision and reliability. Featuring a National Pipe Thread of 1/8in, this fitting ensures a secure connection in high-pressure and chemical environments. The innovative i-Fitting® components, including body, ferrule, nut, and identification band, enhance safety, productivity, and cost-efficiency. With a patented design by BMT, this fitting eliminates over- and under-tightening issues, making it ideal for valve connections. Its material composition of Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, and Stainless Steel ensures durability and longevity.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

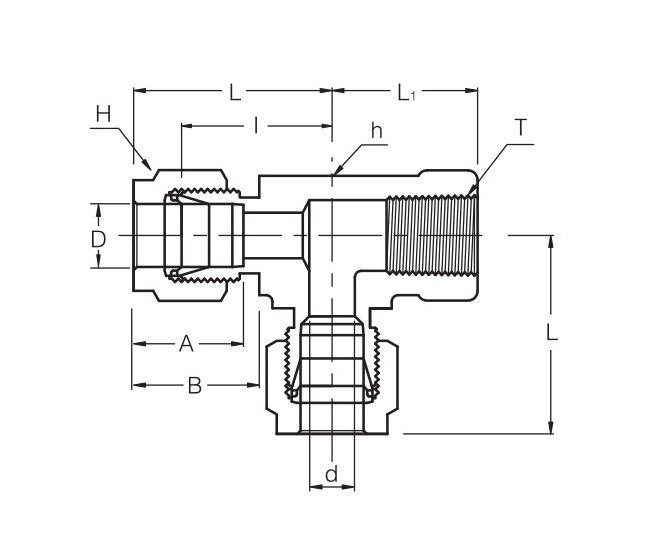

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
19.55 mm
Technical Specs Dimension L
26.92 mm
Technical Specs Dimension L1
19.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
