SFRTI Series Female Run Tee Fitting - 16mm Tube OD, 1/2" Thread Size
SFRTI Series Female Run Tee Fitting - 16mm Tube OD, 1/2" Thread Size
SKU:SFR-adb49e
Enhance connections with the SFRTI Female Run Tee Fitting - 16mm Tube OD, 1/2" Thread Size for efficient and safe installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SFRTI Series Female Run Tee Fitting - 16mm Tube OD, 1/2" Thread Size
$24.99
Quantity: 1
Claim Your Seller Account
SFRTI Series Female Run Tee Fitting - 16mm Tube OD, 1/2" Thread Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

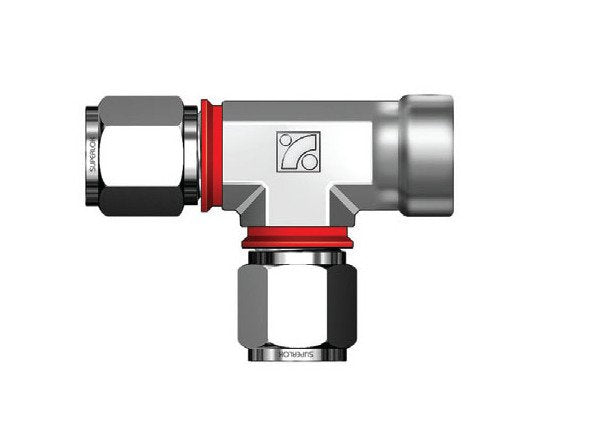

The SFRTI Series Female Run Tee Fitting is designed to seamlessly connect 16mm metric tubes to male ISO tapered threads. Its technical specs include a 1/2" thread size, alloy construction for durability, and innovative i-Fitting® components for perfect compression and ease of installation. This fitting enhances installer safety, increases productivity, and offers a patented design that revolutionizes industrial connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

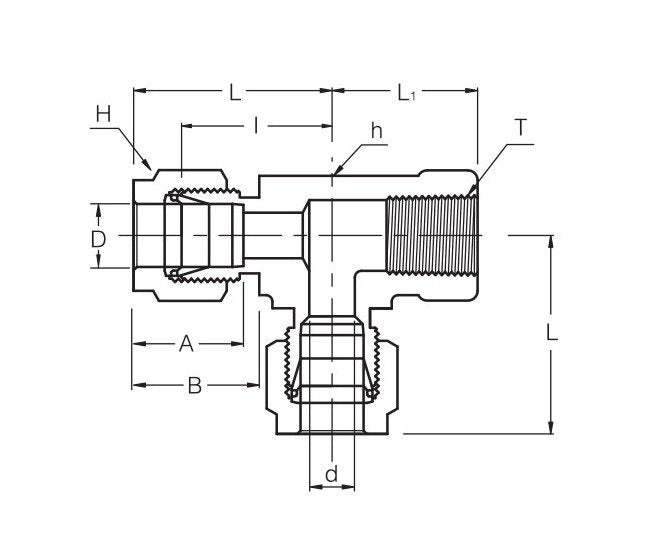

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
29.7 mm
Technical Specs Dimension L
39.8 mm
Technical Specs Dimension L1
28.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
12.7 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
16 mm
Technical Specs Width Across Flat H
25 mm
