SG Series Precision Surface Grinders
SG Series Precision Surface Grinders
SKU:2AN-e24a9e
Experience precision at its finest with SG Series Precision Surface Grinders by Supertec®. Industry-leading design for accuracy and repeatability.
Regular price
$46,999.99
Regular price
Sale price
$46,999.99
Unit price
per
Initiate Order
SG Series Precision Surface Grinders
$46,999.99
Quantity: 1
Claim Your Seller Account
SG Series Precision Surface Grinders
$46,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

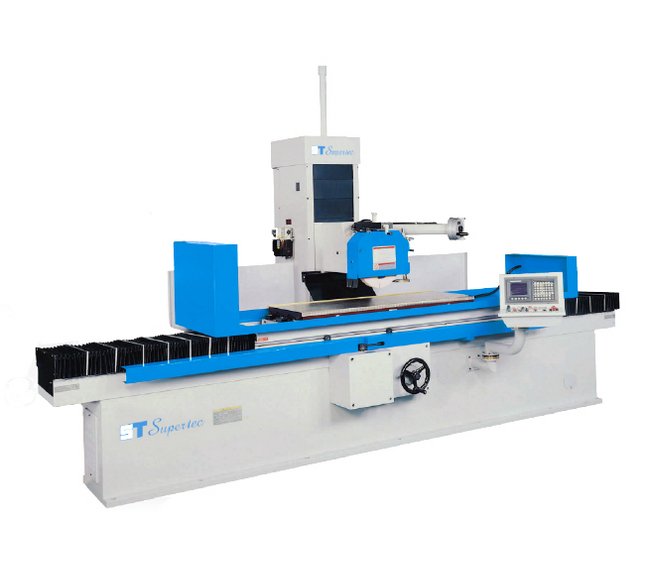

The SG Series Precision Surface Grinders by Supertec® are at the pinnacle of machine tool innovation. With a grinding surface of 20 x 60 inches, reinforced Meehanite castings, and spindle motor powers ranging from 10 to 15 hp, these automatic grinders ensure unparalleled accuracy and repeatability for precision grinding operations. Features like double 'V' ways, auto downfeed driven by AC servo motor, and PLC touch screen control with three axes make these grinders ideal for institutional use, meeting stringent standards for performance and reliability.
Product Specifications
Additional Information 0
10 hp spindle motor (15 hp optional)20" x 60" grinding area14" x 2" x 5" grinding wheelPLC touch screen control (3 axes)No table over hangAuto lube system
Features Of Column Type Design 0
Here are some of the more popular features of the column type design:10 hp spindle motor (15 hp opt.)Extra wide machine base eliminates table over hangDual hydraulic cylinders on table for smoother reversal movement of tableDouble "V" way on cross and longitudinal axesPLC control with AC servo motor (3 axes)Manual pulse generator (MPG) for vertical movement (wheelhead)Hardened and ground box ways on vertical (wheel head) travel
Features Of Saddle Type Design 0
Double "V" ways on longitudinal and cross ways3 hp spindle motor (SG-1020) 2 or 3 axes5 HP spindle motor (SG-1224) 2 or 3 axes7.5 hp spindle motor (SG-1632)Auto downfeed driven by AC servo motor with rapid up/down on 3 axesAuto lube systemExtra low noise & low temperature growth on hydraulic system & spindle assemblyTwice annealed casting for greater stabilityLow-friction coated surfaces - slideways are hand scraped & coated with Turcite-BSpindle run-out 0.0001" TIRHardened and ground box ways on vertical travel

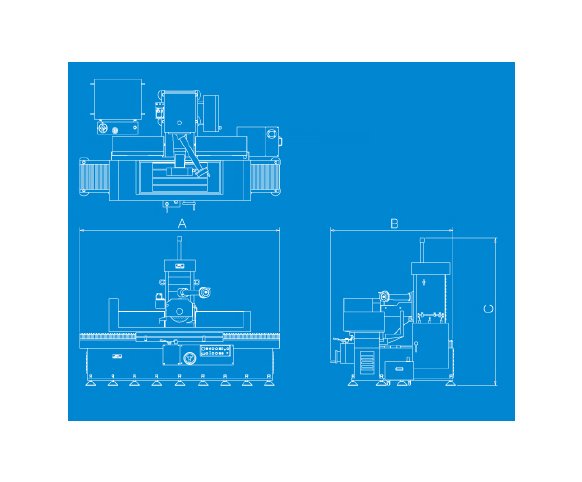

Specifications Dimension A
4700 in
Specifications Dimension B
1970 in
Specifications Dimension C
2280 in
Specifications Grinding Surface Of Table
20 x 60 in
Specifications Manufacturer
Supertec®
Specifications Spindle Motor Power
10 hp
Specifications Spindle Motor Power Optional
15 hp
Specifications Wheel Inside Diameter
5 in
Specifications Wheel Outside Diameter
14 in
Specifications Wheel Width
2 in
