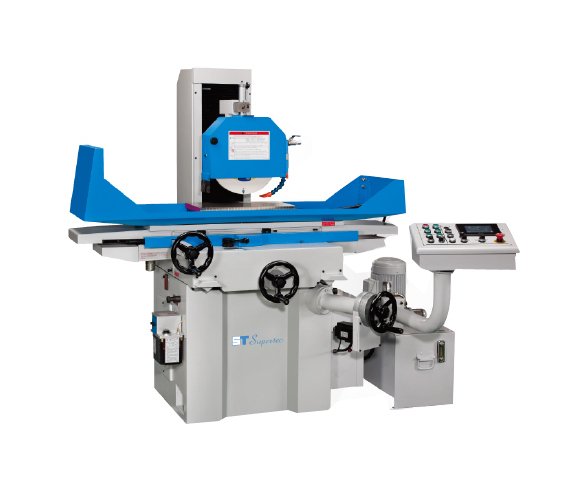

The SG Series Precision Surface Grinders by Supertec® offer state-of-the-art machine tool design featuring heavy-duty Meehanite castings and advanced electronics. With precise specifications like 11 x 24 in Cross and Long Axis Travel and a 10 x 20 in Grinding Surface of Table, these grinders ensure exceptional accuracy and repeatability. Equipped with 3 Axis Auto Downfeed, AC servo motor systems, and low-friction coated surfaces, these grinders guarantee high performance and stability. Ideal for industrial applications requiring stringent precision and reliability.
Product Specifications
Additional Information 0
3 hp spindle motor10" x 20" grinding area14" x 1" x 5" grinding wheelAC servo motor on downfeedAuto lube system
Features Of Column Type Design 0
Here are some of the more popular features of the column type design:10 hp spindle motor (15 hp opt.)Extra wide machine base eliminates table over hangDual hydraulic cylinders on table for smoother reversal movement of tableDouble "V" way on cross and longitudinal axesPLC control with AC servo motor (3 axes)Manual pulse generator (MPG) for vertical movement (wheelhead)Hardened and ground box ways on vertical (wheel head) travel
Features Of Saddle Type Design 0
Double "V" ways on longitudinal and cross ways3 hp spindle motor (SG-1020) 2 or 3 axes5 HP spindle motor (SG-1224) 2 or 3 axes7.5 hp spindle motor (SG-1632)Auto downfeed driven by AC servo motor with rapid up/down on 3 axesAuto lube systemExtra low noise & low temperature growth on hydraulic system & spindle assemblyTwice annealed casting for greater stabilityLow-friction coated surfaces - slideways are hand scraped & coated with Turcite-BSpindle run-out 0.0001" TIRHardened and ground box ways on vertical travel
Specifications 3 Axis Auto Downfeed Cii Control
0.0001 ~ 0.01 in
Specifications Approximate Continuous Crossfeed
40 in/min
Specifications Approximate Intermittent Crossfeed
0.1 ~ 0.4 in/feed
Specifications Approximate Rapid Vertical Traverse
9.4 in/min
Specifications Cross And Long Axis Travel
11 x 24 in
Specifications Cross Handwheel Per Division
0.0005 in
Specifications Cross Handwheel Per Revolution
0.1 in

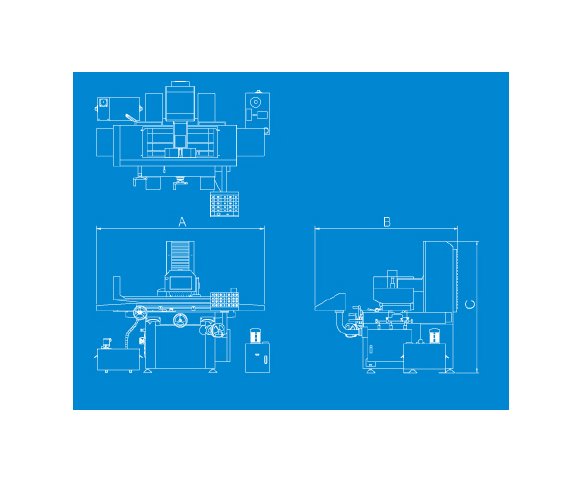

Specifications Dimension A
1700 in
Specifications Dimension B
1870 in
Specifications Dimension C
1800 in
Specifications Grinding Surface Of Table
10 x 20 in
Specifications Hydraulic Table Speed
40 ~ 1000 in/min
Specifications Machine Gross Weight
3750 lb
Specifications Machine Net Weight
2970 lb
Specifications Manufacturer
Supertec®
Specifications Maximum Dimension A
2300 in
Specifications Packing Height
77 in
Specifications Packing Length
70 in
Specifications Packing Width
59 in
Specifications Spindle Motor Power
3 hp
Specifications Spindle Speed At 60 Hz
1800 rpm
Specifications Spindle Speed At 60 Hz Optional
3600 with 7 in.
Specifications Table Top To Spindle Center Line
19.2 in
Specifications Vertical Handwheel Per Division
0.0001 in
Specifications Vertical Handwheel Per Revolution
0.05 in
Specifications Wheel Inside Diameter
5 in
Specifications Wheel Inside Diameter Optional
1-1/4 in
Specifications Wheel Outside Diameter
14 in
Specifications Wheel Outside Diameter Optional
7 in
Specifications Wheel Width
1 in
Specifications Wheel Width Optional
1/2 in
