SGCI 1/2in Tube OD & 1/4mm Thread Gauge Connector Fitting
SGCI 1/2in Tube OD & 1/4mm Thread Gauge Connector Fitting
SKU:SGC-5ed4a1
Enhance industrial connections with the SGCI Gauge Connector Fitting for optimized safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SGCI 1/2in Tube OD & 1/4mm Thread Gauge Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SGCI 1/2in Tube OD & 1/4mm Thread Gauge Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial connections with the SGCI Series Gauge Connector Fitting designed to effortlessly link fractional tubes to ISO parallel threads. Crafted from top-notch materials like Alloy 625, Stainless Steel, and more, this fitting ensures superior durability and performance. Featuring the innovative i-Fitting® components with a built-in gap gauge, this fitting guarantees perfect compression, enhancing safety, productivity, and cost-effectiveness. Say goodbye to over-tightening issues and hello to efficiency with this industry-changing design by BMT.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

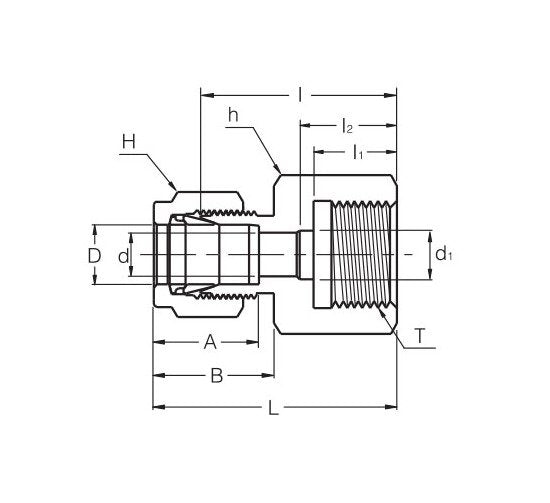

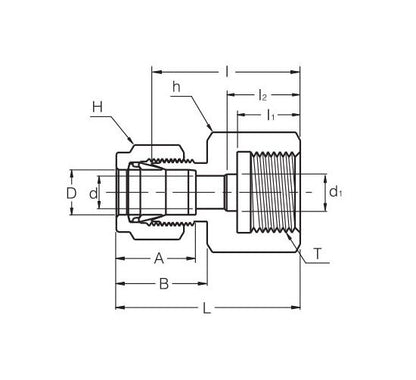

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
31.8 mm
Technical Specs Dimension I1
13 mm
Technical Specs Dimension L
41.95 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.58 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
