SGCI 12mm Tube OD Gauge Connector Fitting
SGCI 12mm Tube OD Gauge Connector Fitting
SKU:SGC-a24ec4
Precision 12mm Tube OD Connector Fitting for reliable metric tube to ISO thread connections. Enhances safety and productivity in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SGCI 12mm Tube OD Gauge Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SGCI 12mm Tube OD Gauge Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 12mm Tube OD Gauge Connector Fitting is designed to connect metric tubes to ISO parallel threads with precision and reliability. This fitting features i-Fitting® components including body, front & back ferrule, nut, identification band, and check ring. The built-in check ring acts as a gap gauge, ensuring perfect compression and eliminating over- and under-tightening issues. With a patented design by BMT, this fitting enhances installer safety in high-pressure and chemical environments, improves productivity, and reduces costs. Made from premium materials like Alloy 625, Alloy 825, Stainless Steel, and more, it meets stringent industry standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

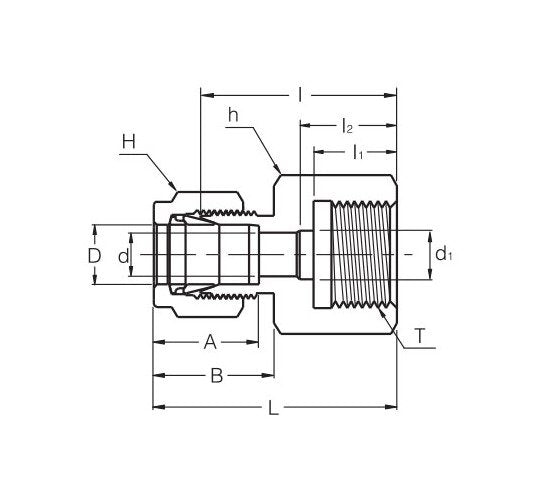

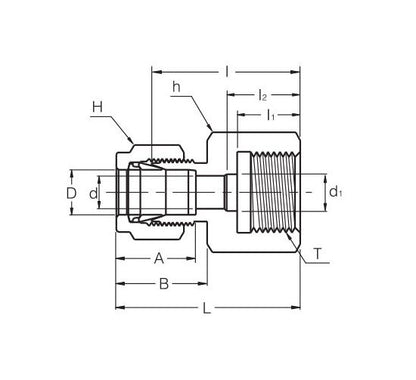

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension D1
7.0 mm
Technical Specs Dimension I
38.1 mm
Technical Specs Dimension I1
19 mm
Technical Specs Dimension L
48.2 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.0 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
