SGCI Series 1/2 Inch Tube Outside Diameter Gauge Connector Fitting
SGCI Series 1/2 Inch Tube Outside Diameter Gauge Connector Fitting
SKU:SGC-6e4a89
Effortlessly connect fractional tubes to ISO threads with the SGCI Series Gauge Connector Fitting. Enhanced safety, efficiency, and durability in one.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SGCI Series 1/2 Inch Tube Outside Diameter Gauge Connector Fitting
$35.99
Quantity: 1
Claim Your Seller Account
SGCI Series 1/2 Inch Tube Outside Diameter Gauge Connector Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series Gauge Connector Fitting boasts a robust design that effortlessly connects fractional tubes to ISO parallel threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability in various industrial applications. The innovative i-Fitting® components, such as the built-in check ring for precise compression, enhance safety in high-pressure environments, ultimately improving installation efficiency and reducing costs. Designed to meet stringent industry standards, this fitting is a game-changer in valve connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

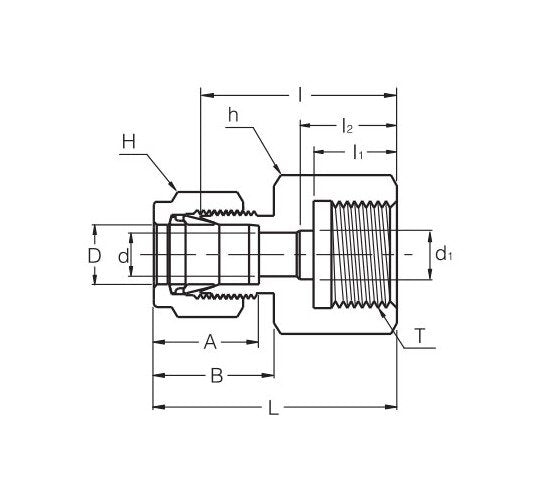

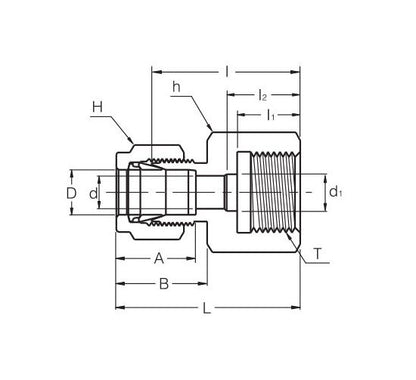

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension D1
7.11 mm
Technical Specs Dimension I
38.1 mm
Technical Specs Dimension I1
18.80 mm
Technical Specs Dimension L
48.26 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
