SGCI Series 1/4in Tube OD Gauge Connector Fitting
SGCI Series 1/4in Tube OD Gauge Connector Fitting
SKU:SGC-e944b0
Precision-designed SGCI Series 1/4in Tube OD Gauge Connector Fitting for secure and safe valve connections.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SGCI Series 1/4in Tube OD Gauge Connector Fitting
$35.99
Quantity: 1
Claim Your Seller Account
SGCI Series 1/4in Tube OD Gauge Connector Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 1/4in Tube OD Gauge Connector Fitting is designed to connect fractional tubes to ISO parallel threads, offering precise compatibility and secure connections. Made from robust materials including Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliable performance. Its innovative i-Fitting® design features a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments. With easy installation and cost-saving benefits, this fitting is ideal for various valve connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

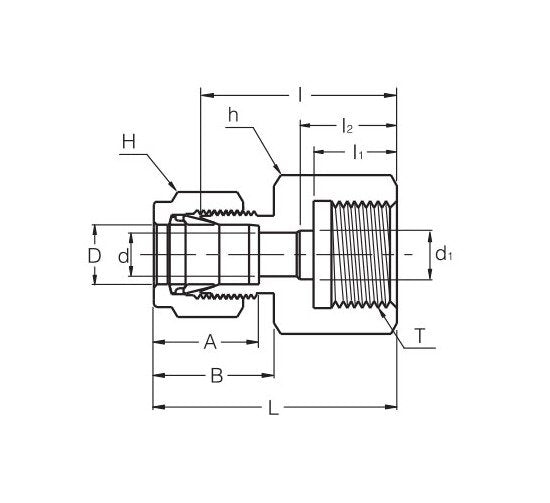

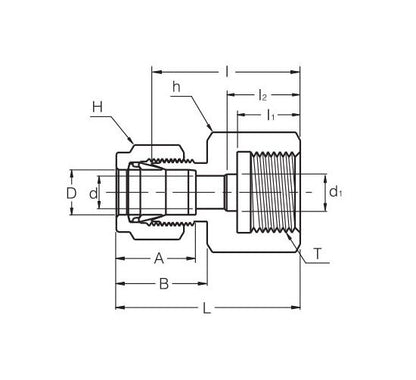

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension D1
6.60 mm
Technical Specs Dimension I
36.07 mm
Technical Specs Dimension I1
18.80 mm
Technical Specs Dimension I2
24.90 mm
Technical Specs Dimension L
43.43 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
