SGCI Series 10mm Tube Connector Fitting
SGCI Series 10mm Tube Connector Fitting
SKU:SGC-49e595
Enhance tube-to-thread connections with SGCI Series 10mm Fitting. Patented design for safety & precision. Versatile & reliable in high-pressure settings.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SGCI Series 10mm Tube Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SGCI Series 10mm Tube Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 10mm Tube Connector Fitting is designed to seamlessly connect metric tubes to ISO parallel threads. Crafted from a range of high-quality materials including Alloy 625, Stainless Steel, and Aluminum, this fitting ensures reliable performance in diverse environments. Featuring i-Fitting® components for enhanced safety, productivity, and cost-efficiency, it includes a patented check ring for precise compression, making it ideal for high-pressure and chemical applications. With dimensions from 6 to 25mm, this fitting offers versatility and industry-leading innovation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

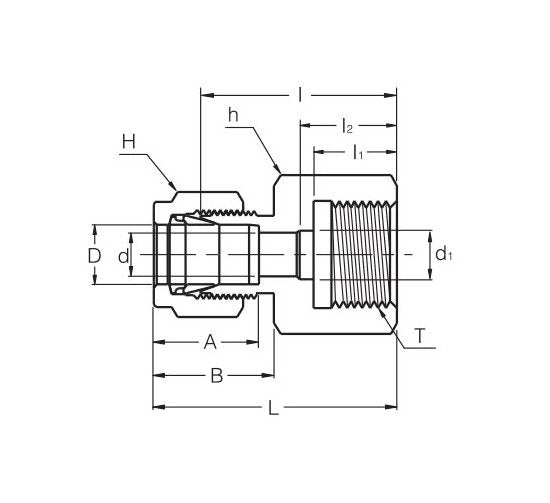

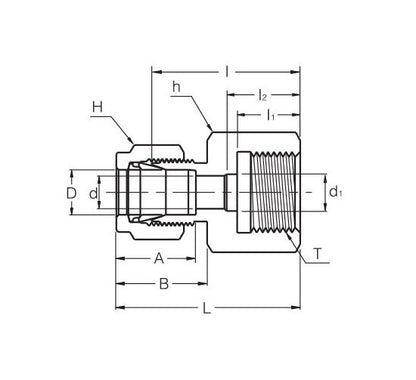

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension D1
7.0 mm
Technical Specs Dimension I
34.5 mm
Technical Specs Dimension I1
19 mm
Technical Specs Dimension L
42.1 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.0 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
