SGCI Series 10mm Tube OD Gauge Connector Fitting
SGCI Series 10mm Tube OD Gauge Connector Fitting
SKU:SGC-6bb033
Enhance tubing connections with precision and safety using SGCI Series 10mm Tube OD Gauge Connector Fitting. Ensure optimal tightness and safety in high-pressure environments.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
SGCI Series 10mm Tube OD Gauge Connector Fitting
$25.99
Quantity: 1
Claim Your Seller Account
SGCI Series 10mm Tube OD Gauge Connector Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing connections with precision and safety using the SGCI Series 10mm Tube OD Gauge Connector Fitting. This advanced fitting features i-Fitting® components for perfect compression, ensuring optimal tightness without risks of over or under-tightening. Enhance installer safety in high-pressure environments with the built-in gap gauge and improve productivity while reducing costs. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting is feature-rich and industry-changing with its patented design by BMT.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

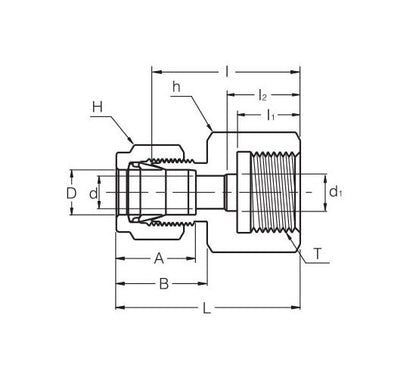

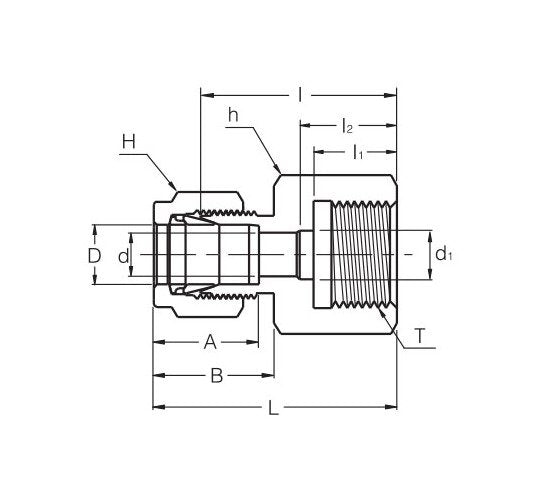

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension D1
6.5 mm
Technical Specs Dimension I
31.2 mm
Technical Specs Dimension I1
14.0 mm
Technical Specs Dimension L
38.8 mm
Technical Specs Dimension T Pf
3/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
