SGCI Series 12mm Tube Gauge Connector Fitting
SGCI Series 12mm Tube Gauge Connector Fitting
SKU:SGC-c5c6d5
Enhance tube connections with the SGCI Series 12mm Gauge Fitting for precise compression and increased safety in demanding environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SGCI Series 12mm Tube Gauge Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SGCI Series 12mm Tube Gauge Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your metric tube connections with the SGCI Series 12mm Tube Gauge Connector Fitting. Crafted from high-quality materials like Alloy 625, Stainless Steel, and more, this fitting features an innovative i-Fitting® design that enhances safety, productivity, and cost-efficiency in high-pressure environments. The patented check ring ensures perfect compression, eliminating over- and under-tightening issues. Meet industry standards with this reliable connector fitting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

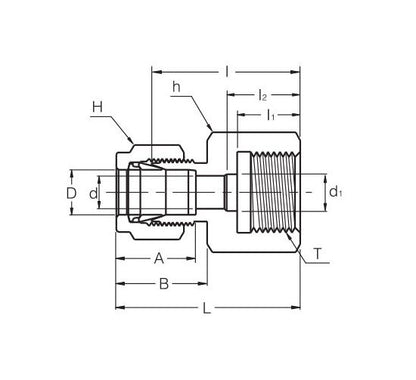

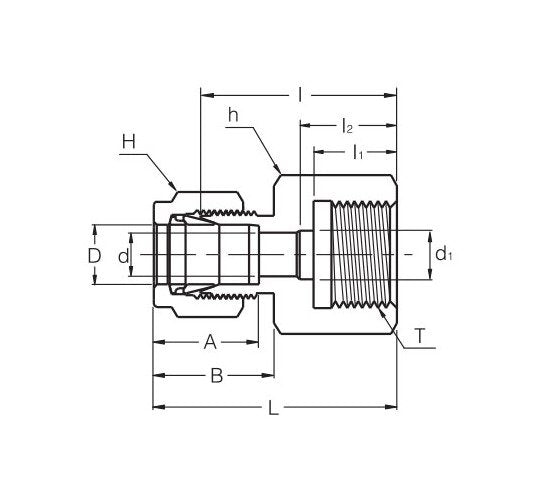

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension D1
5.5 mm
Technical Specs Dimension I
31.8 mm
Technical Specs Dimension I1
13 mm
Technical Specs Dimension L
41.9 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
