SGCI Series 12mm Tube OD & 3/8mm Thread Gauge Connector Fitting
SGCI Series 12mm Tube OD & 3/8mm Thread Gauge Connector Fitting
SKU:SGC-f7c4f2
Enhance metric tube connections with SGCI Gauge Connector Fitting for safety & efficiency in high-pressure setups. Durable alloys ensure industry compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SGCI Series 12mm Tube OD & 3/8mm Thread Gauge Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SGCI Series 12mm Tube OD & 3/8mm Thread Gauge Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your metric tubing connections with the SGCI Series Gauge Connector Fitting. This fitting features a precision design including i-Fitting® components for optimal compression, safety, and productivity. The built-in gap gauge ensures perfect tightening, enhancing installer safety in high pressure and chemical environments. With alloys like 625, 825, and stainless steel, this fitting guarantees durability and efficiency. Meet industry standards and improve your operations with the SGCI Series.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

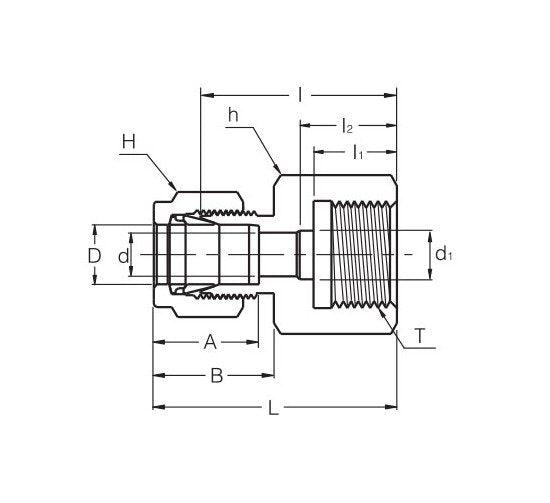

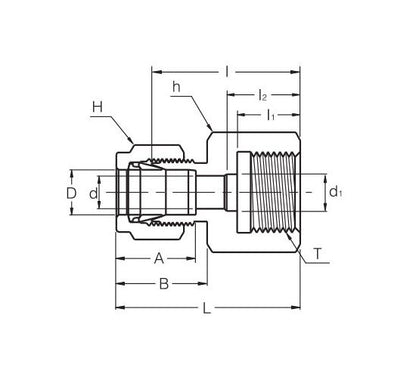

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension D1
6.5 mm
Technical Specs Dimension I
34.3 mm
Technical Specs Dimension I1
14.0 mm
Technical Specs Dimension L
44.4 mm
Technical Specs Dimension T Pf
3/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
