SGCI Series 3/8 in Tube OD Gauge Connector Fitting
SGCI Series 3/8 in Tube OD Gauge Connector Fitting
SKU:SGC-68b7b4
Securely connect fractional tubes to ISO threads with the SGCI Series 3/8 in Gauge Fitting, enhancing safety and productivity.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SGCI Series 3/8 in Tube OD Gauge Connector Fitting
$35.99
Quantity: 1
Claim Your Seller Account
SGCI Series 3/8 in Tube OD Gauge Connector Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 3/8-inch Tube OD Gauge Connector Fitting is designed to expertly connect fractional tubes to ISO parallel threads. Featuring precise technical specifications including a 3/8-inch tube outside diameter and a 1/4-millimeter thread size, this fitting ensures a secure and reliable connection. The innovative i-Fitting® components, such as the identification band and check ring, enhance safety, productivity, and cost-efficiency in high-pressure environments. Crafted from premium materials like Alloy 625, Stainless Steel, and more, this fitting is industry-changing with its patented design.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

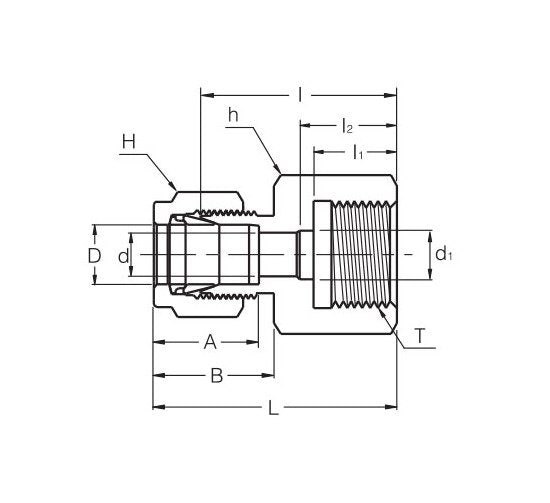

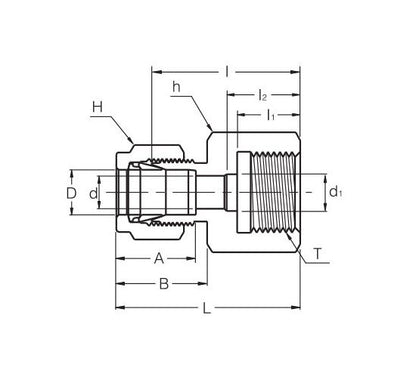

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
31.75 mm
Technical Specs Dimension I1
13 mm
Technical Specs Dimension L
39.12 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.58 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
