SGCI Series 6mm Tube Gauge Connector Fitting
SGCI Series 6mm Tube Gauge Connector Fitting
SKU:SGC-2787db
Achieve seamless metric tube-to-thread connections with the SGCI Series 6mm Connector, enhancing safety and productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SGCI Series 6mm Tube Gauge Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SGCI Series 6mm Tube Gauge Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 6mm Tube Gauge Connector Fitting is designed to seamlessly connect metric tubes to ISO parallel threads, ensuring a secure and leak-free connection. Crafted from high-quality materials such as Alloy 625, Stainless Steel, and more, this fitting guarantees durability and corrosion resistance. Featuring i-Fitting components including a check ring for optimal compression and safety, this innovative design simplifies installation, improves productivity, and reduces costs. Industry-leading in performance and safety, this fitting is ideal for high-pressure and chemical environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

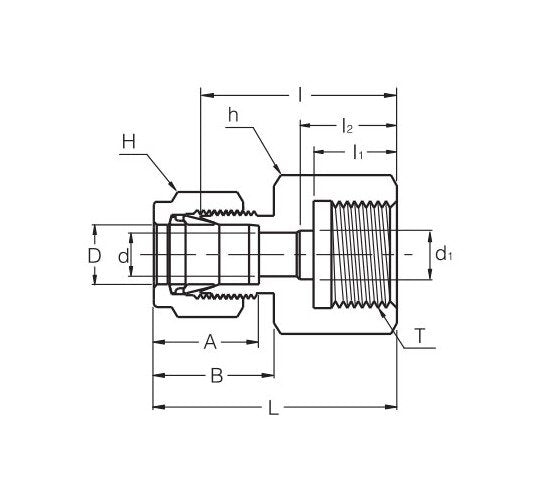

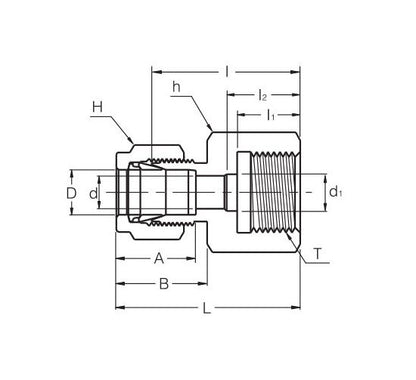

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension D1
7.0 mm
Technical Specs Dimension I
36.1 mm
Technical Specs Dimension I1
19 mm
Technical Specs Dimension I2
25 mm
Technical Specs Dimension L
43.5 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
