SGCI Series 6mm Tube OD Gauge Connector Fitting
SGCI Series 6mm Tube OD Gauge Connector Fitting
SKU:SGC-467b18
Connect metric tubes to ISO threads with precision and safety using the SGCI Series 6mm Tube OD Gauge Connector Fitting.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SGCI Series 6mm Tube OD Gauge Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SGCI Series 6mm Tube OD Gauge Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 6mm Tube OD Gauge Connector Fitting is designed to seamlessly connect metric tubes to ISO parallel threads, ensuring reliable and leak-free connections. Crafted from high-quality materials such as Alloy 625, Stainless Steel, and more, this fitting guarantees durability and longevity. Featuring the innovative i-Fitting® components, including body, ferrules, nut, and check ring, this fitting simplifies installation, enhances safety in high-pressure environments, and reduces costs. Its patented design by BMT sets a new industry standard in compression fittings, providing unmatched performance and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

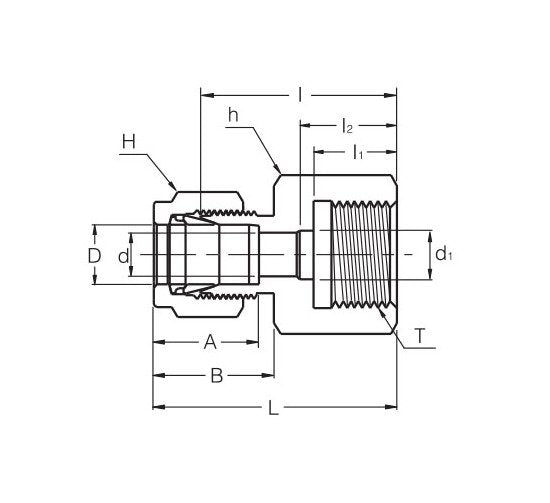

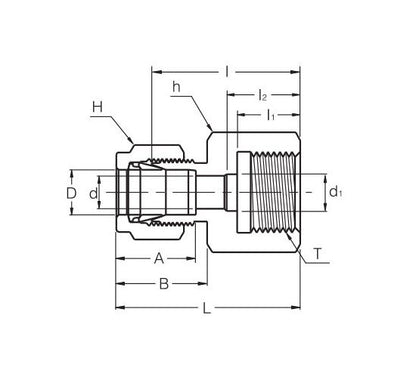

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension D1
6.5 mm
Technical Specs Dimension I
30.2 mm
Technical Specs Dimension I1
14.0 mm
Technical Specs Dimension I2
20 mm
Technical Specs Dimension L
37.6 mm
Technical Specs Dimension T Pf
3/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
