SGCI Series 8mm Tube OD Gauge Connector Fitting
SGCI Series 8mm Tube OD Gauge Connector Fitting
SKU:SGC-dc49ed
Enhance safety and productivity with the SGCI Series 8mm Tube OD Gauge Connector Fitting's precision design and innovative features.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
SGCI Series 8mm Tube OD Gauge Connector Fitting
$32.99
Quantity: 1
Claim Your Seller Account
SGCI Series 8mm Tube OD Gauge Connector Fitting
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 8mm Tube OD Gauge Connector Fitting is expertly designed to connect metric tubes to ISO parallel threads. This fitting boasts a robust construction with a range of materials including Alloy 625, Stainless Steel, and more, ensuring durability and reliability in various environments. Featuring the innovative i-Fitting® components, such as a unique check ring for perfect compression, this fitting enhances safety, productivity, and cost-efficiency. With dimensions crafted for precision and performance, this industry-changing design by BMT is ideal for valve connections in industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

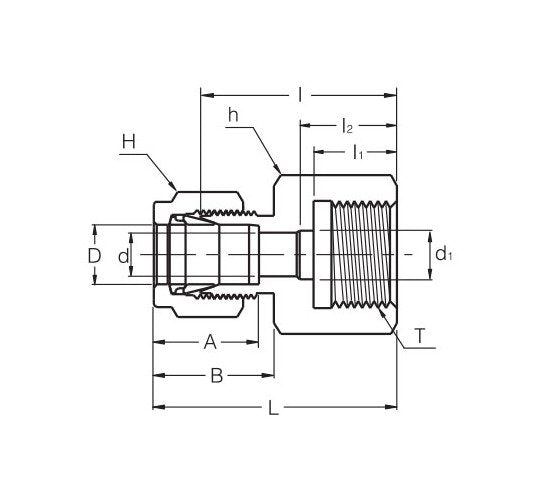

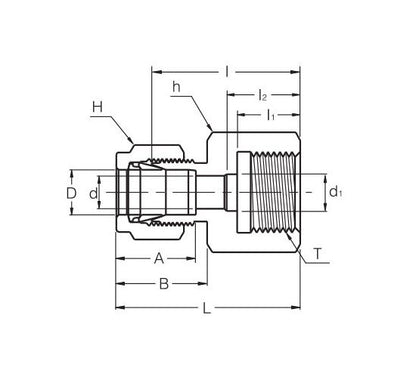

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension D1
5.5 mm
Technical Specs Dimension I
31.0 mm
Technical Specs Dimension I1
13 mm
Technical Specs Dimension L
38.5 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
