The SGCI Series 1/4 Inch Tube OD and 3/8mm Thread Size Gauge Connector Fitting is a durable solution that seamlessly connects fractional tubes to ISO parallel threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting features a patented i-Fitting® design ensuring perfect compression, enhancing safety in high-pressure environments, and boosting productivity. With a built-in check ring for precise tightening and easy installation, this connector fitting is ideal for valve connections in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

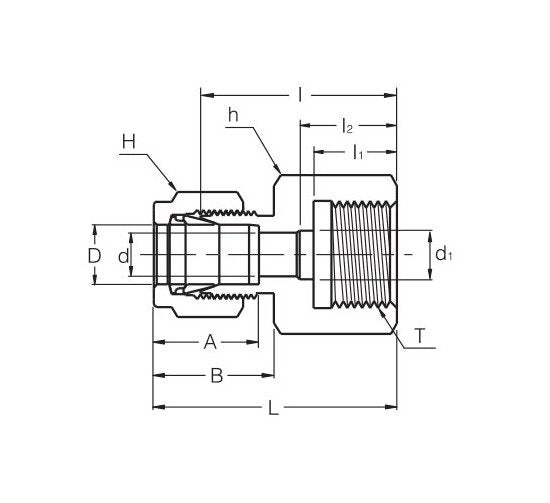

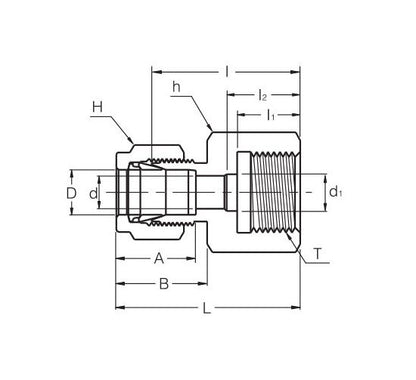

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension D1
6.60 mm
Technical Specs Dimension I
30.22 mm
Technical Specs Dimension I1
14.20 mm
Technical Specs Dimension I2
20.30 mm
Technical Specs Dimension L
37.59 mm
Technical Specs Dimension T Pf
3/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
