SGCI Series Gauge Connector Fitting - 3/8 in Tube OD, 3/8 mm Thread Size
SGCI Series Gauge Connector Fitting - 3/8 in Tube OD, 3/8 mm Thread Size
SKU:SGC-3ac5f7
Enhance industrial connections with precision and safety using SGCI Series Gauge Connector Fitting. Patented design for optimal performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SGCI Series Gauge Connector Fitting - 3/8 in Tube OD, 3/8 mm Thread Size
$24.99
Quantity: 1
Claim Your Seller Account
SGCI Series Gauge Connector Fitting - 3/8 in Tube OD, 3/8 mm Thread Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial connections with the SGCI Series Gauge Connector Fitting. This fitting allows seamless connection between fractional tubes and ISO parallel threads. Crafted from premium materials including Alloy 625, Alloy 825, and Stainless Steel, it ensures reliable performance in high-pressure environments. The industry-changing i-Fitting® design enhances installer safety, increases productivity, and eliminates over-tightening issues. Experience ultimate precision and efficiency with this patented connector fitting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

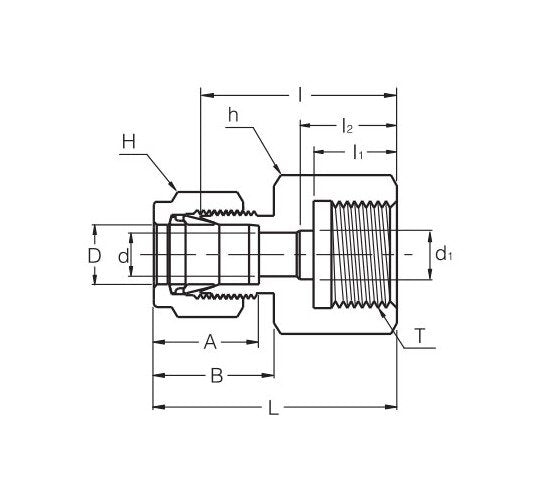

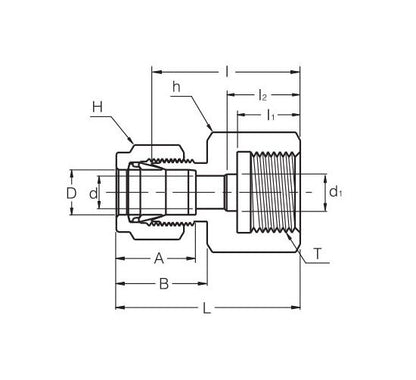

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
31.24 mm
Technical Specs Dimension I1
14.20 mm
Technical Specs Dimension L
38.61 mm
Technical Specs Dimension T Pf
3/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.60 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
