SGCI Series Gauge Connector Fitting - 6mm Tube OD, 1/4mm Thread, Alloy 625
SGCI Series Gauge Connector Fitting - 6mm Tube OD, 1/4mm Thread, Alloy 625
SKU:SGC-aa5413
Enhance metric tube connections with precision and safety using Alloy 625 SGCI Fitting.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SGCI Series Gauge Connector Fitting - 6mm Tube OD, 1/4mm Thread, Alloy 625
$39.99
Quantity: 1
Claim Your Seller Account
SGCI Series Gauge Connector Fitting - 6mm Tube OD, 1/4mm Thread, Alloy 625
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your metric tube connections with the SGCI Series 6mm Tube OD and 1/4mm Thread Gauge Connector Fitting. Crafted from premium Alloy 625, this fitting features i-Fitting® components for enhanced compression, safety, and productivity. The built-in gap gauge ensures perfect tightening, ideal for high pressure and chemical environments. This industry-changing design helps you connect with precision, efficiency, and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

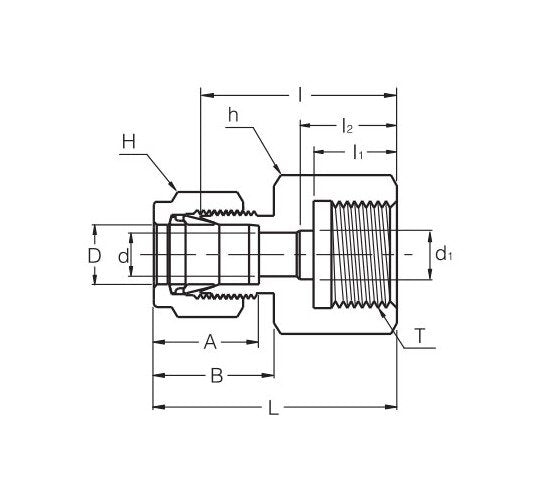

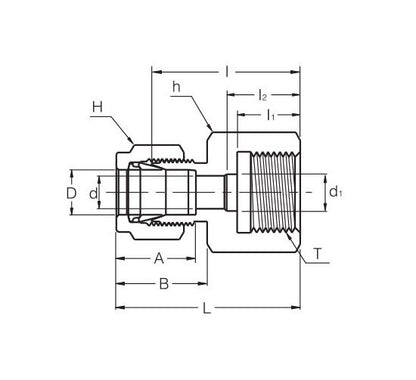

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension D1
5.5 mm
Technical Specs Dimension I
30.2 mm
Technical Specs Dimension I1
13 mm
Technical Specs Dimension I2
17.00 mm
Technical Specs Dimension L
37.6 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
