SGCI Series Gauge Connector Fitting, 8mm Tube OD, 3/8 Thread Size
SGCI Series Gauge Connector Fitting, 8mm Tube OD, 3/8 Thread Size
SKU:SGC-194fab
Enhance your connections with the SGCI Series 8mm Tube OD 3/8 Thread Gauge Connector Fitting for secure, precise valve connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SGCI Series Gauge Connector Fitting, 8mm Tube OD, 3/8 Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
SGCI Series Gauge Connector Fitting, 8mm Tube OD, 3/8 Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 8mm Tube OD and 3/8 Thread Size Gauge Connector Fitting is designed to connect metric tubes to ISO parallel thread, providing a secure and leak-free connection. Crafted from high-quality materials like Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliability in various environments. Featuring i-Fitting® components, including a unique check ring for precise compression, this fitting enhances safety, productivity, and cost-effectiveness. Ideal for valve connections, this industry-changing design by BMT sets a new standard for fittings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

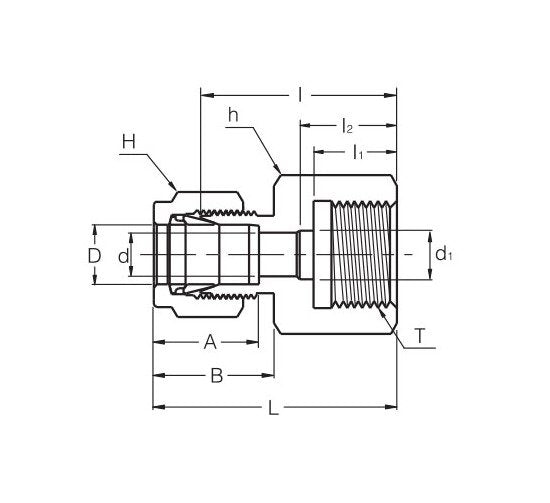

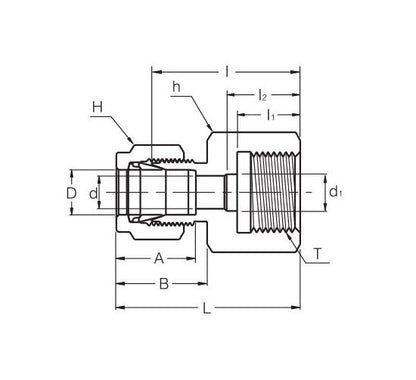

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension D1
6.5 mm
Technical Specs Dimension I
28.7 mm
Technical Specs Dimension I1
14.0 mm
Technical Specs Dimension L
36.2 mm
Technical Specs Dimension T Pf
3/8 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
