Shamrock 0.16-0.25A Selectable Phase Thermal Overload Relay
Shamrock 0.16-0.25A Selectable Phase Thermal Overload Relay
SKU:REL-19b685
Enhanced protection & efficiency with Shamrock 0.16-0.25A Thermal Overload Relay
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Shamrock 0.16-0.25A Selectable Phase Thermal Overload Relay
$59.99
Quantity: 1
Claim Your Seller Account
Shamrock 0.16-0.25A Selectable Phase Thermal Overload Relay
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

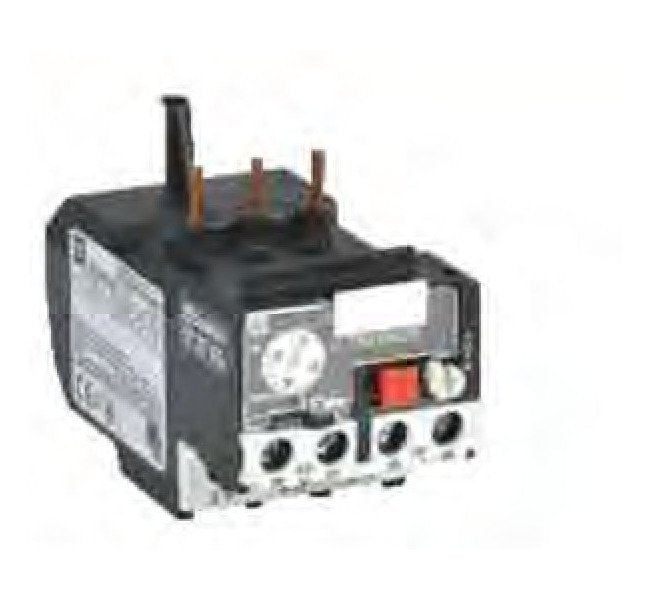

The Shamrock 0.16 to 0.25 Ampere Thermal Overload Relay offers reliable protection against single phasing, phase loss, and operation overloads in both single-phase and three-phase settings. With built-in single-phase protection, potention free contact options, an indicator for potential relay tripping, and manual reset capability, this relay ensures enhanced safety and efficient operation. It complies with stringent industry standards, making it ideal for diverse applications in institutional and government settings.
Product Specifications
Accessories Accessories

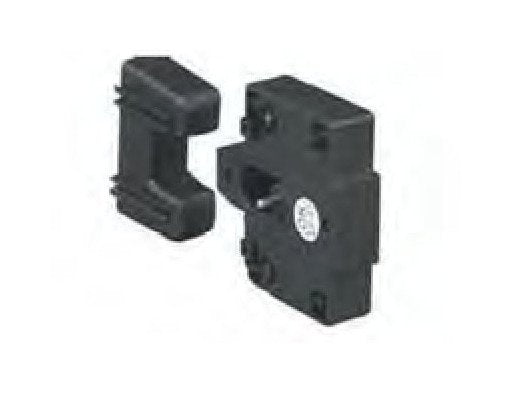

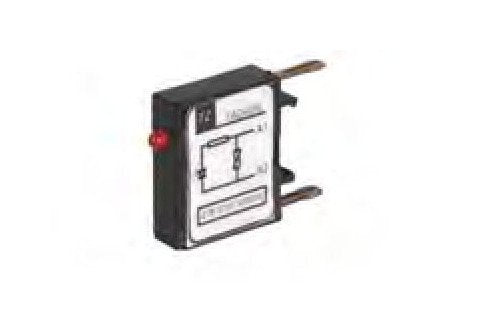

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
0.16 to 0.25 A
