Shamrock 1-1.6A Overload Relay
Shamrock 1-1.6A Overload Relay
SKU:REL-639423
Protect motors from overload with Shamrock 1-1.6A Relay. Built-in protection & manual reset for efficient operation.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Shamrock 1-1.6A Overload Relay
$39.99
Quantity: 1
Claim Your Seller Account
Shamrock 1-1.6A Overload Relay
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

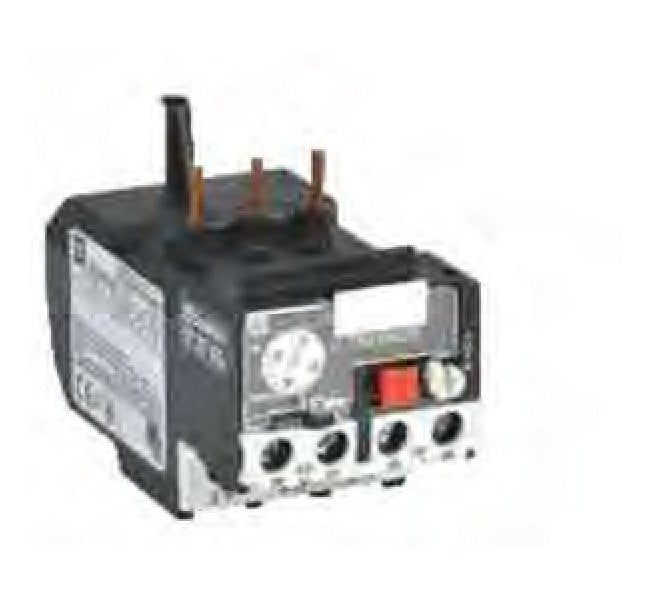

The Shamrock 1 to 1.6 Ampere Overload Relay is designed to protect against operation overload, single phasing, and phase loss. With a relay setting range of 1 to 1.6 A, this relay offers built-in single-phase protection, potention-free contacts, and manual reset facilities. It features IP20 finger-touch proof casing and a yellow flag indicator for relay tripping. Suitable for three-phase motors, this relay is a reliable choice for ensuring motor safety and efficiency.
Product Specifications
Accessories Accessories

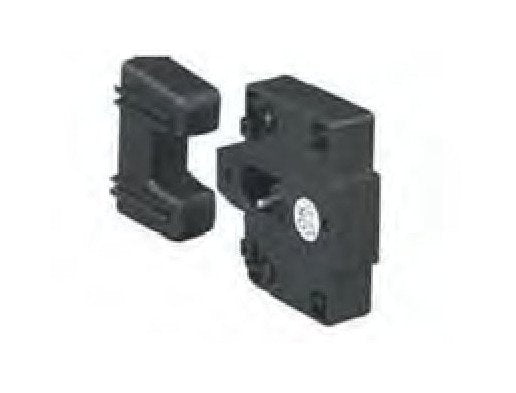

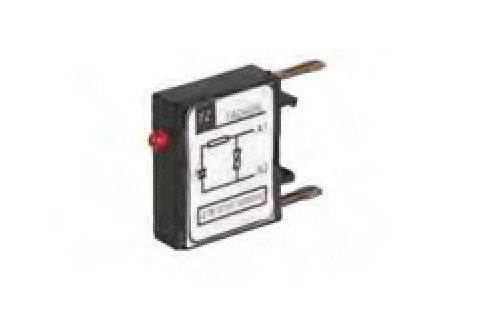

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
1 to 1.6 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
1.1 kW
