Shamrock 1.6-2.5A Thermal Release Manual Motor Starter
Shamrock 1.6-2.5A Thermal Release Manual Motor Starter
SKU:MOT-e70891
The Shamrock 1.6-2.5A Motor Starter: Reliable protection, easy mounting, and compliance with EN60947-4-1 & IEC947-4-1.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Shamrock 1.6-2.5A Thermal Release Manual Motor Starter
$59.99
Quantity: 1
Claim Your Seller Account
Shamrock 1.6-2.5A Thermal Release Manual Motor Starter
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock 1.6 to 2.5 Ampere Thermal Release Adjustment Range Manual Motor Starter is designed to be sensitive to phase failure, providing reliable protection against overloads and short circuits. This motor starter is compliant with EN60947-4-1 and IEC947-4-1 standards, ensuring exceptional safety and performance. With easy snap fitting on a 35mm wide mounting rail and compatibility with various voltages and phases, this motor starter is ideal for industrial applications requiring precision and efficiency.
Product Specifications
Accessories Accessories

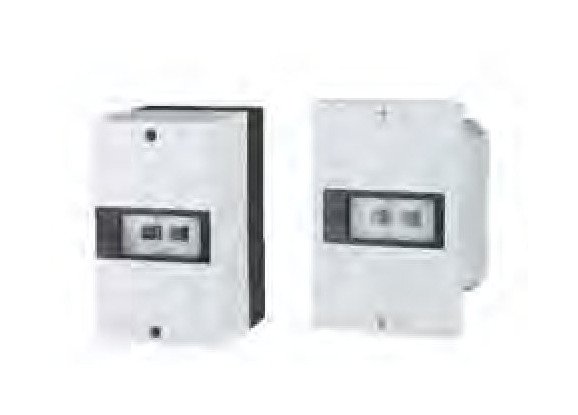

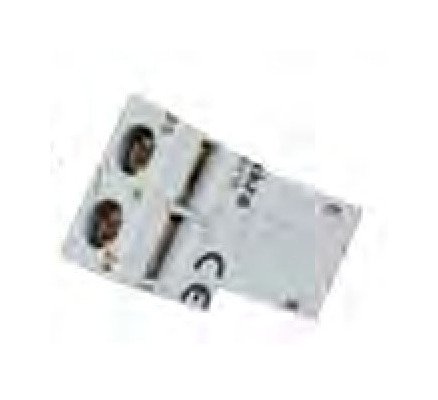

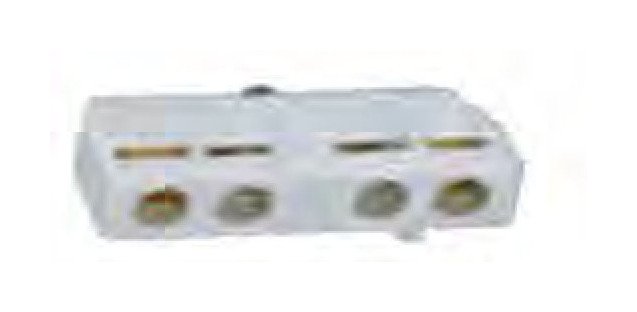

Item #: TCHSV01Item Name: Front Mount Auxiliary SwitchContact Type: 1NCItem #: TCHSV10Item Name: Front Mount Auxiliary SwitchContact Type: 1NOItem #: TCHS11Item Name: Side Mount Auxiliary SwitchContact Type: 1NO + 1NCItem #: TCHS20Item Name: Side Mount Auxiliary SwitchContact Type: 2 NOItem #: TCHRS10Item Name: Trip Indication Contact BlockDescription: 1NO Auxiliary ContactItem #: TCHRS01Item Name: Trip Indication Contact BlockDescription: 1NC Auxiliary ContactItem #: TCMSHOItem Name: Enclosure (IP55)Description: Flush Mounted TypeItem #: TCMSFPItem Name: Enclosure (IP55)Description: Surface Mounted TypeItem #: TCES-TItem Name: Emergency Stop ButtonDescription: Red - Emergency StopItem #: TCSS1Item Name: Signal Lamp - WhiteDescription: Lamp (Available in 24V, 120V, 240V)Item #: TCSS3Item Name: Signal Lamp - GreenDescription: Lamp (Available in 24V, 120V, 240V)Item #: TCSS4Item Name: Signal Lamp - RedDescription: Lamp (Available in 24V, 120V, 240V)Item #:TCMSURItem Name: Voltage ReleasesDescription: Under Voltage Release (24-600 VAC)Item #:TCMSARItem Name: Voltage ReleasesDescription: Short Release (24-600 VAC)
Specifications Number Of Phases Ph
1 | 3
Specifications Power At Single Phase 200 Voltage V
0.16 hp
Specifications Power At Single Phase 230 Voltage V
0.16 hp
Specifications Power At Single Phase 460 Voltage V
0.5 hp
Specifications Power At Single Phase 575 Voltage V
0.5 hp
Specifications Power At Three Phase 200 Voltage V
0.5 hp
Specifications Power At Three Phase 230 Voltage V
0.5 hp
Specifications Power At Three Phase 460 Voltage V
1 hp
Specifications Power At Three Phase 575 Voltage V
15 hp
Specifications Thermal Release Adjustment Range
1.6 to 2.5 A
