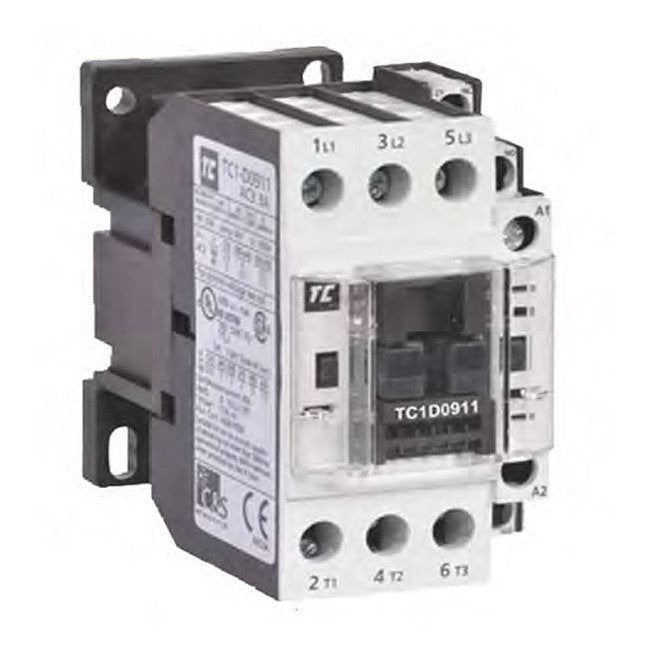

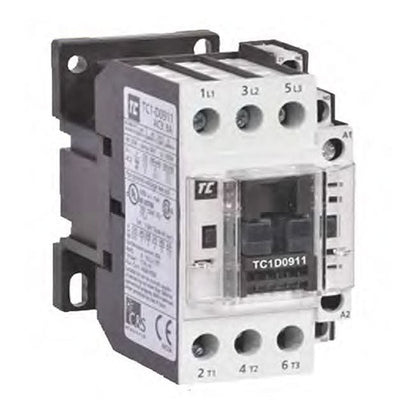

Shamrock 12A Contactor for Government and Industrial Use
Shamrock 12A Contactor for Government and Industrial Use
SKU:CON-528ae5
High-performance 12A contactor meeting IEC, UL, CSA, and CE standards for reliable industrial and government use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Shamrock 12A Contactor for Government and Industrial Use
$49.99
Quantity: 1
Claim Your Seller Account
Shamrock 12A Contactor for Government and Industrial Use
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock 12A Contactor is meticulously crafted to deliver optimal performance and safety. Designed to meet stringent IEC, UL, CSA, and CE standards, this reliable contactor ensures high durability and efficiency. With a current range of 7 to 38 A, flexible control circuit characteristics, and impeccable environmental specifications, this contactor is ideal for both government and industrial applications.
Product Specifications
Control Circuit Characteristics Control Voltage Limits Drop Out
0.3 to 0.6 Uc
Control Circuit Characteristics Control Voltage Limits Operation
0.85 to 1.1 Uc
Control Circuit Characteristics Maximum Operating Rate
3600 cycles/hr
Control Circuit Characteristics Mechanical Durability
15 Million Cycles
Control Circuit Characteristics Operating Time Closing
12 to 22 ms
Control Circuit Characteristics Operating Time Opening
4 to 19 ms
Control Circuit Characteristics Rated Control Circuit Voltage Uc
24 to 690 V
Dimensions Depth
90 mm
Dimensions Height
85 mm
Dimensions Width
45 mm
Environment Ambient Temperature Around Device At Operation 085 1
-5 to +60 ºC
Environment Ambient Temperature Around Device Permissible At Uc
-40 to +70 ºC
Environment Ambient Temperature Around Device Storage
-60 to +80 ºC
Environment Degree Of Protection International Electrotechnical
Ingress Protection (IP20)
Environment Flame Resistance Ul 94
Vo
Environment Rated Impulse Withstand Voltage Uimp
6 kV
Environment Rated Insulation Voltage Ui Conforming To Internatio
1000 V
Environment Rated Insulation Voltage Ui Conforming To Underwrite
690 V
Mounting Mounting Length
60 mm | 70 mm
Mounting Mounting Width
35 mm
Pole Characteristics Conventional Thermal Current Ith 40
25 A
Pole Characteristics Electrical Durability
2 Million Cycles
Pole Characteristics Maximum Average Impedance Per Pole At 50 He
2 mΩ
Pole Characteristics Maximum Operating Rate On Load Ac3
600 cycles/hr
Pole Characteristics Rated Breaking Capacity 440 Voltage
450 A
Pole Characteristics Rated Making Capacity 440 V
450 A
Pole Characteristics Rated Operational Current Le Ue 440v In Alt
12 A
Power Circult Connections Flexible Cable Without Cable End 1 Con
0.75 to 16 mm²
Power Circult Connections Flexible Cable Without Cable End 2 Con
0.75 to 16 mm³
Power Circult Connections Flexible Cable With Cable End 1 Conduc
0.75 to 16 mm²
Power Circult Connections Flexible Cable With Cable End 2 Conduc
0.75 to 16 mm³
Power Circult Connections Solid Cable Without Cable End 1 Conduc
0.75 to 16 mm²
Power Circult Connections Solid Cable Without Cable End 2 Conduc
0.75 to 16 mm²
Specifications Auxiliary Contacts Type
Normally Closed | Normally Open
Specifications Certifications
Canadian Standards Association (CSA) | European Conformity (CE) | International Electrotechnical Commission (IEC) Approved | International Electrotechnical Commission (IEC60947-4-1) | International Organization for Standardization (ISO 90001) | Underwriters Laboratories (UL) Listed
Specifications Current Range
7 to 38 A
