Shamrock 2.5-4A Relay Overload for 3-Phase Motors
Shamrock 2.5-4A Relay Overload for 3-Phase Motors
SKU:REL-5bdd8a
Ensure motor protection with this versatile 2.5-4A Relay Overload for 3-Phase Motors from Shamrock Controls.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Shamrock 2.5-4A Relay Overload for 3-Phase Motors
$49.99
Quantity: 1
Claim Your Seller Account
Shamrock 2.5-4A Relay Overload for 3-Phase Motors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

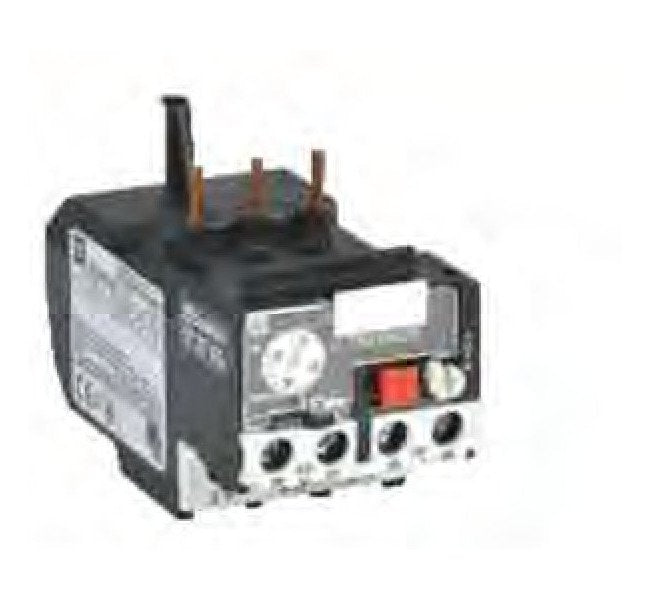

The Shamrock 2.5 to 4 Ampere (A) Relay Setting Range Overload Relay is designed to protect against operation overload, single phasing, and phase loss in both single-phase and three-phase operations. With a built-in single-phase protection feature and potention-free contacts, this relay offers reliability and safety. The manual reset facility, yellow flag indicator, and IP 20 finger touch-proof design enhance user convenience and safety. Suitable for standard power ratings of 3-phase motors at various voltages (220V, 380V, 415V, 440V, 660V), this relay ensures efficient motor protection and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories

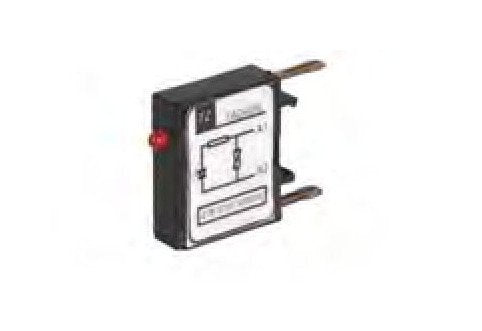

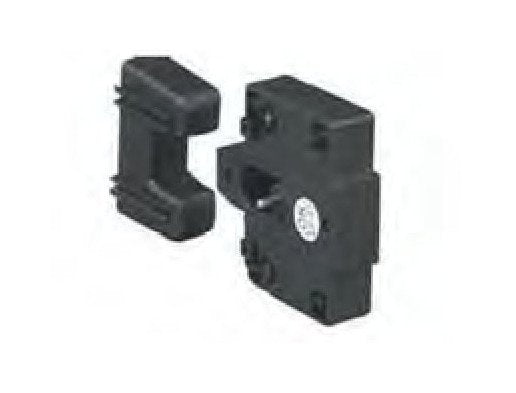

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
2.5 to 4 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
3 kW
