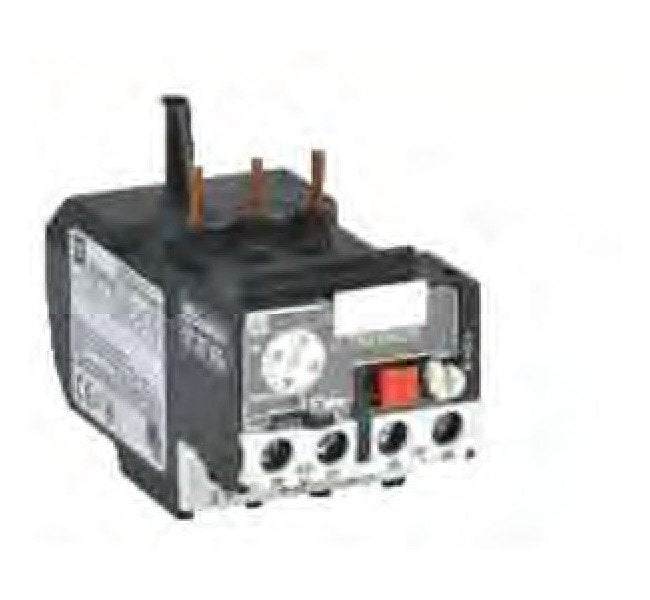

Shamrock 23-32A Thermal Overload Relay
Shamrock 23-32A Thermal Overload Relay
SKU:REL-66b9f5
Protect motors against overload with the Shamrock 23-32A Thermal Overload Relay. Features built-in protection and manual reset for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Shamrock 23-32A Thermal Overload Relay
$49.99
Quantity: 1
Claim Your Seller Account
Shamrock 23-32A Thermal Overload Relay
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock 23 to 32 Ampere Thermal Overload Relay is a reliable protection solution against operational overload, single phasing, and phase loss for both single-phase and three-phase operations. This high-quality relay, designed by Shamrock Controls, features a selectable overload range, built-in single-phase protection, potention-free contacts, yellow flag indicator for relay tripping, manual reset facility, and IP 20 finger touch proof design. Suitable for standard power ratings of 3 Phase Motors across different voltage levels, this overload relay ensures optimal motor protection and efficient operation in various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories

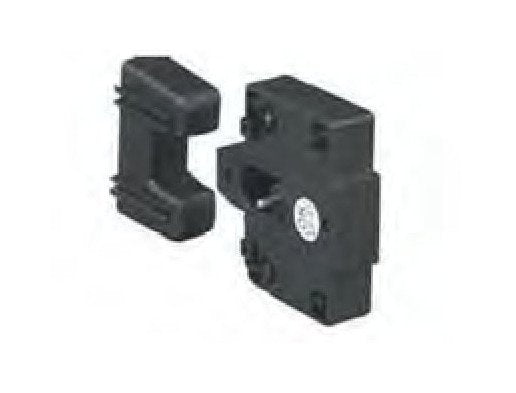

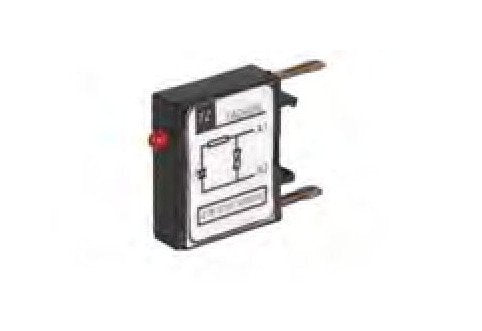

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
23 to 32 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
15 kW
