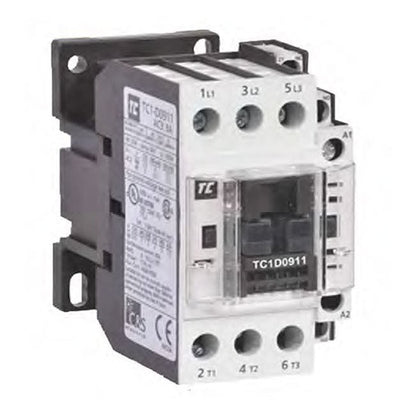

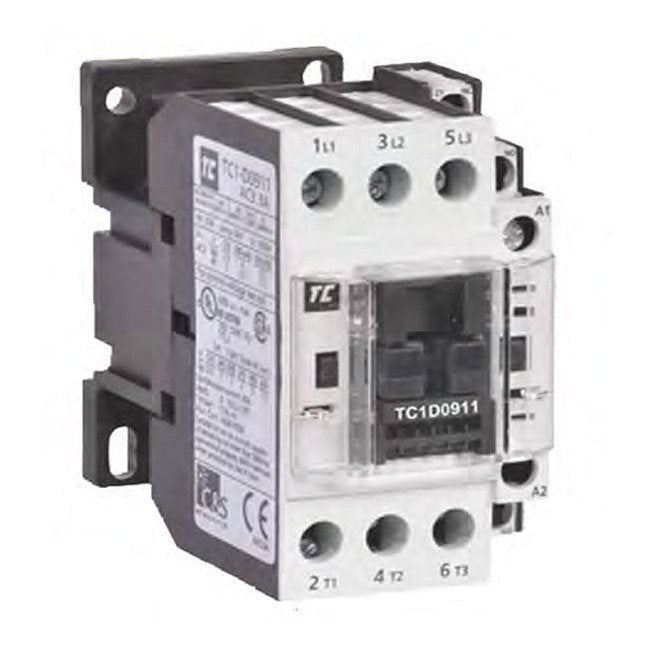

Shamrock 25A Contactor for Power Control
Shamrock 25A Contactor for Power Control
SKU:CON-b1d2a0
Experience top-tier performance with the Shamrock 25A Contactor. Certified to meet global standards, this reliable solution ensures safe and efficient power control.
Regular price
$74.99
Regular price
Sale price
$74.99
Unit price
per
Initiate Order
Shamrock 25A Contactor for Power Control
$74.99
Quantity: 1
Claim Your Seller Account
Shamrock 25A Contactor for Power Control
$74.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock 25 Ampere Contactor is expertly crafted to deliver exceptional performance, compact design, and utmost safety for industrial applications. With certifications including CSA, CE, IEC, and ISO 90001, this contactor meets global standards. Offering a flexible product selection, this contactor ensures reliable power control in AC 3 Phase systems. Boasting a mechanical durability of 15 million cycles and electrical durability of 2 million cycles, this contactor is a dependable choice for efficient power management.
Product Specifications
Control Circuit Characteristics Control Voltage Limits Drop Out
0.3 to 0.6 Uc
Control Circuit Characteristics Control Voltage Limits Operation
0.85 to 1.1 Uc
Control Circuit Characteristics Maximum Operating Rate
3600 cycles/hr
Control Circuit Characteristics Mechanical Durability
15 Million Cycles
Control Circuit Characteristics Operating Time Closing
12 to 22 ms
Control Circuit Characteristics Operating Time Opening
4 to 19 ms
Control Circuit Characteristics Rated Control Circuit Voltage Uc
24 to 690 V
Dimensions Depth
95 mm
Dimensions Height
85 mm
Dimensions Width
45 mm
Environment Ambient Temperature Around Device At Operation 085 1
-5 to +60 ºC
Environment Ambient Temperature Around Device Permissible At Uc
-40 to +70 ºC
Environment Ambient Temperature Around Device Storage
-60 to +80 ºC
Environment Degree Of Protection International Electrotechnical
Ingress Protection (IP20)
Environment Flame Resistance Ul 94
Vo
Environment Rated Impulse Withstand Voltage Uimp
6 kV
Environment Rated Insulation Voltage Ui Conforming To Internatio
1000 V
Environment Rated Insulation Voltage Ui Conforming To Underwrite
690 V
Mounting Mounting Length
60 mm | 70 mm
Mounting Mounting Width
35 mm
Pole Characteristics Conventional Thermal Current Ith 40
40 A
Pole Characteristics Electrical Durability
2 Million Cycles
Pole Characteristics Maximum Average Impedance Per Pole At 50 He
2 mΩ
Pole Characteristics Maximum Operating Rate On Load Ac3
600 cycles/hr
Pole Characteristics Rated Breaking Capacity 440 Voltage
450 A
Pole Characteristics Rated Making Capacity 440 V
450 A
Pole Characteristics Rated Operational Current Le Ue 440v In Alt
25 A
Power Circult Connections Flexible Cable Without Cable End 1 Con
0.75 to 10 mm²
Power Circult Connections Flexible Cable Without Cable End 2 Con
0.75 to 10 mm³
Power Circult Connections Flexible Cable With Cable End 1 Conduc
0.75 to 10 mm²
Power Circult Connections Flexible Cable With Cable End 2 Conduc
0.75 to 10 mm³
Power Circult Connections Solid Cable Without Cable End 1 Conduc
0.75 to 10 mm²
Power Circult Connections Solid Cable Without Cable End 2 Conduc
0.75 to 10 mm²
Specifications Auxiliary Contacts Type
Normally Closed | Normally Open
Specifications Certifications
Canadian Standards Association (CSA) | European Conformity (CE) | International Electrotechnical Commission (IEC) Approved | International Electrotechnical Commission (IEC60947-4-1) | International Organization for Standardization (ISO 90001) | Underwriters Laboratories (UL) Listed
Specifications Current Range
7 to 38 A
