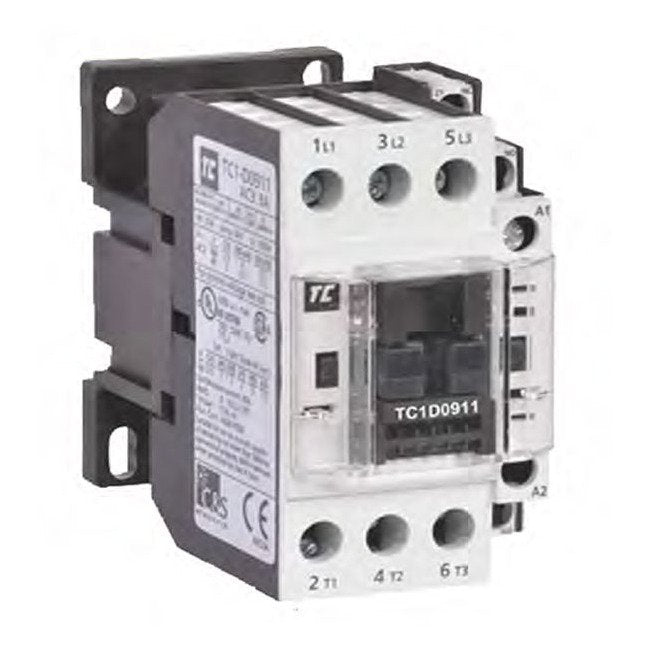

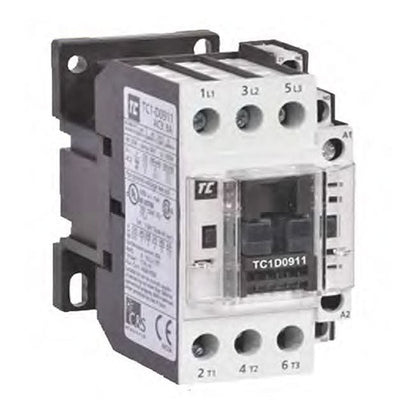

Shamrock 32A Contactors
Shamrock 32A Contactors
SKU:CON-1057e1
High-performance 32A contactor meeting IEC, UL, CSA, and CE Standards. Compact, safe, and reliable for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Shamrock 32A Contactors
$49.99
Quantity: 1
Claim Your Seller Account
Shamrock 32A Contactors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock 32 Ampere (A) Rated Operational Current Contactor is engineered for high performance, compactness, and safety. Manufactured in an ISO 90001 Certified facility, it meets IEC, UL, CSA, and CE Standards. With a robust design and flexibility, it offers reliable solutions for various applications.
Product Specifications
Control Circuit Characteristics Control Voltage Limits Drop Out
0.3 to 0.6 Uc
Control Circuit Characteristics Control Voltage Limits Operation
0.85 to 1.1 Uc
Control Circuit Characteristics Maximum Operating Rate
3600 cycles/hr
Control Circuit Characteristics Mechanical Durability
15 Million Cycles
Control Circuit Characteristics Operating Time Closing
12 to 22 ms
Control Circuit Characteristics Operating Time Opening
4 to 19 ms
Control Circuit Characteristics Rated Control Circuit Voltage Uc
24 to 690 V
Dimensions Depth
95 mm
Dimensions Height
85 mm
Dimensions Width
45 mm
Environment Ambient Temperature Around Device At Operation 085 1
-5 to +60 ºC
Environment Ambient Temperature Around Device Permissible At Uc
-40 to +70 ºC
Environment Ambient Temperature Around Device Storage
-60 to +80 ºC
Environment Degree Of Protection International Electrotechnical
Ingress Protection (IP20)
Environment Flame Resistance Ul 94
Vo
Environment Rated Impulse Withstand Voltage Uimp
6 kV
Environment Rated Insulation Voltage Ui Conforming To Internatio
1000 V
Environment Rated Insulation Voltage Ui Conforming To Underwrite
690 V
Mounting Mounting Length
60 mm | 70 mm
Mounting Mounting Width
35 mm
Pole Characteristics Conventional Thermal Current Ith 40
50 A
Pole Characteristics Electrical Durability
2 Million Cycles
Pole Characteristics Maximum Average Impedance Per Pole At 50 He
2 mΩ
Pole Characteristics Maximum Operating Rate On Load Ac3
600 cycles/hr
Pole Characteristics Rated Breaking Capacity 440 Voltage
550 A
Pole Characteristics Rated Making Capacity 440 V
550 A
Pole Characteristics Rated Operational Current Le Ue 440v In Alt
32 A
Power Circult Connections Flexible Cable Without Cable End 1 Con
0.75 to 10 mm²
Power Circult Connections Flexible Cable Without Cable End 2 Con
0.75 to 10 mm³
Power Circult Connections Flexible Cable With Cable End 1 Conduc
0.75 to 10 mm²
Power Circult Connections Flexible Cable With Cable End 2 Conduc
0.75 to 10 mm³
Power Circult Connections Solid Cable Without Cable End 1 Conduc
0.75 to 10 mm²
Power Circult Connections Solid Cable Without Cable End 2 Conduc
0.75 to 10 mm²
Specifications Auxiliary Contacts Type
Normally Closed | Normally Open
Specifications Certifications
Canadian Standards Association (CSA) | European Conformity (CE) | International Electrotechnical Commission (IEC) Approved | International Electrotechnical Commission (IEC60947-4-1) | International Organization for Standardization (ISO 90001) | Underwriters Laboratories (UL) Listed
Specifications Current Range
7 to 38 A
