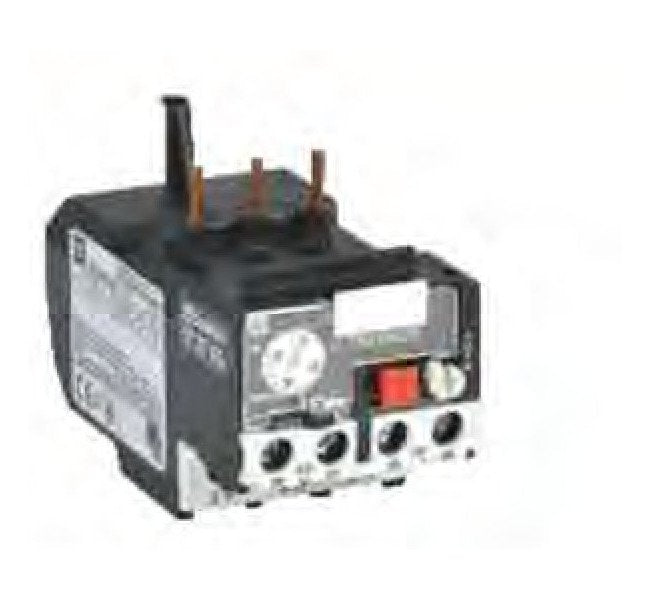

Shamrock 4-6 Amp Overload Relay
Shamrock 4-6 Amp Overload Relay
SKU:REL-f4c6c7
Ensure operational safety with the Shamrock 4-6 Amp Overload Relay - ideal for single and three-phase setups, featuring built-in protection and manual reset.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Shamrock 4-6 Amp Overload Relay
$89.99
Quantity: 1
Claim Your Seller Account
Shamrock 4-6 Amp Overload Relay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock 4-6 Ampere Overload Relay is designed to provide essential protection against operational overload, single phasing, or phase loss in both single-phase and three-phase operations. This reliable relay features a selectable relay setting range of 4 to 6 amps, meeting the standards for 3 phase motors at various voltages. With built-in single-phase protection, potention-free contacts, and indicator flags for potential relay tripping, this relay offers safety and control in industrial settings. Additionally, it includes manual reset functionality and IP20 finger touch-proof casing for added security.
Product Specifications
Accessories Accessories

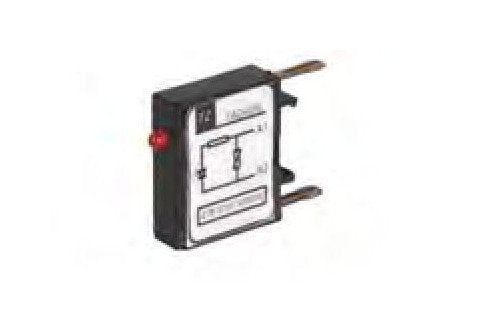

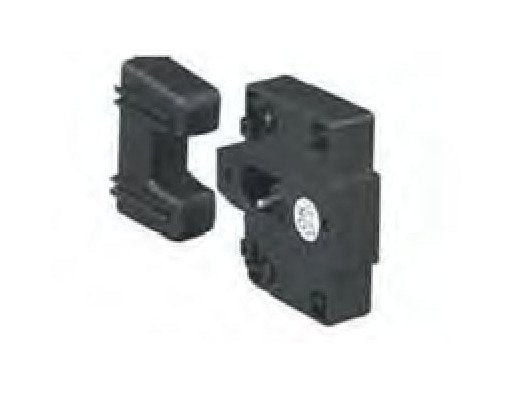

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
4 to 6 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
4 kW
