Shamrock 7-10A Relay Overload Protection
Shamrock 7-10A Relay Overload Protection
SKU:REL-89e48e
Select Shamrock Thermal Overload Relay for motor safety against overload & single phasing. Built-in protection & reliable performance.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Shamrock 7-10A Relay Overload Protection
$69.99
Quantity: 1
Claim Your Seller Account
Shamrock 7-10A Relay Overload Protection
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

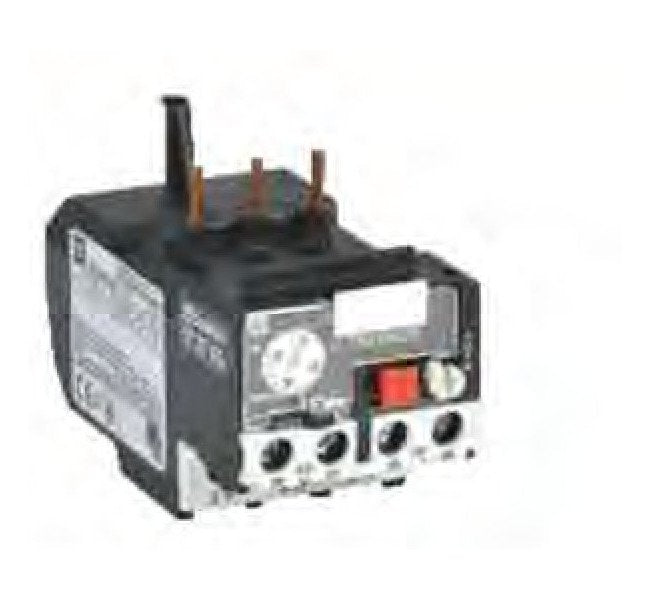

Ensure motor safety with the Shamrock Thermal Overload Relay, offering selectable single or three-phase operation protection against overload, single phasing, and phase loss. This relay, part of the Shamrock Controls lineup, features a 7 to 10A relay setting range, built-in single-phase protection, potention-free contacts, and IP20 finger touch-proof design. With a range of auxiliary accessories available, this relay is a reliable choice for industrial settings requiring precise motor protection.
Product Specifications
Accessories Accessories

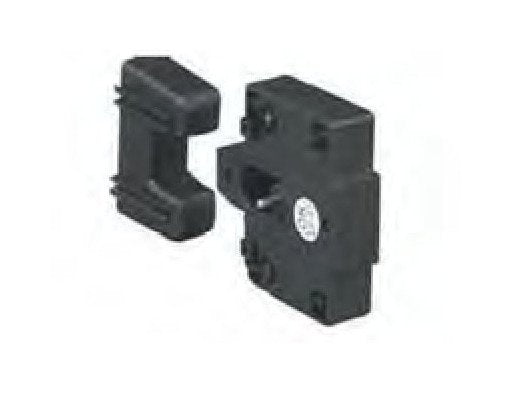

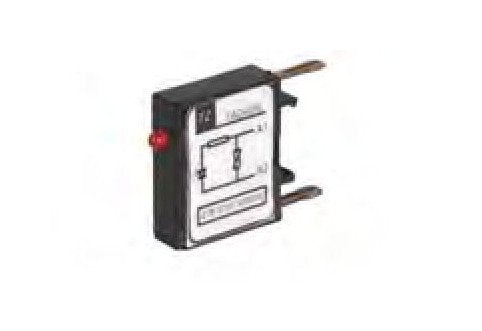

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
7 to 10 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
7.5 kW
