The Shamrock 9 to 13 Ampere Overload Relay offers reliable protection against operation overloads, single phasing, and phase loss for both single-phase and three-phase operations. Featuring a selectable overload range, built-in single-phase protection, and various accessories like auxiliary contact blocks and timers, this relay ensures efficient motor management. With a standard power rating for 3-phase motors at different voltages and IP20 finger-touch proof design, it meets the demands of industrial applications.
Product Specifications
Accessories Accessories

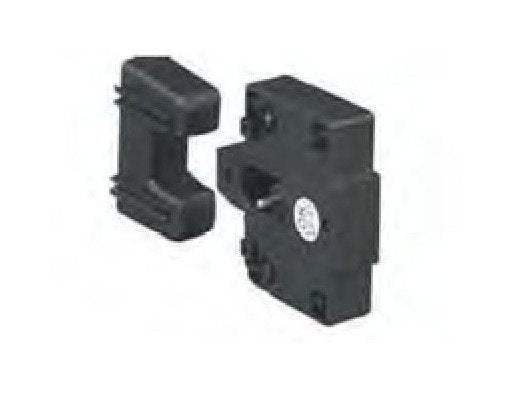

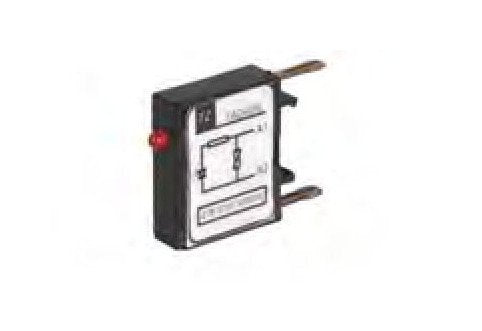

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
9 to 13 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
10 kW
