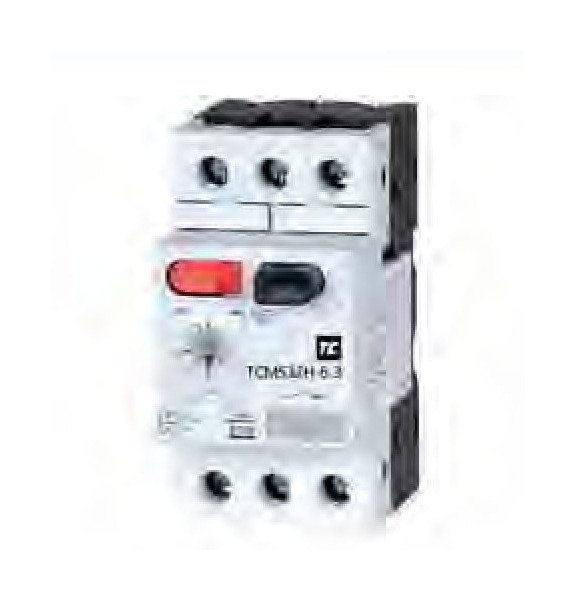

The Shamrock Controls 0.1 to 0.16 Ampere (A) Setting Current Range Manual Motor Starter is a reliable solution for phase failure detection, overload protection, and short circuit prevention. Compliant with EN 60947-4-1 and IEC 947-4-1 standards, this starter ensures secure mounting on a 35mm wide rail or installation distribution box. With a maximum operational voltage of 690V and a setting current range of 0.1 to 0.16 A, it offers precise control and safety for single or three-phase connections.
Product Specifications

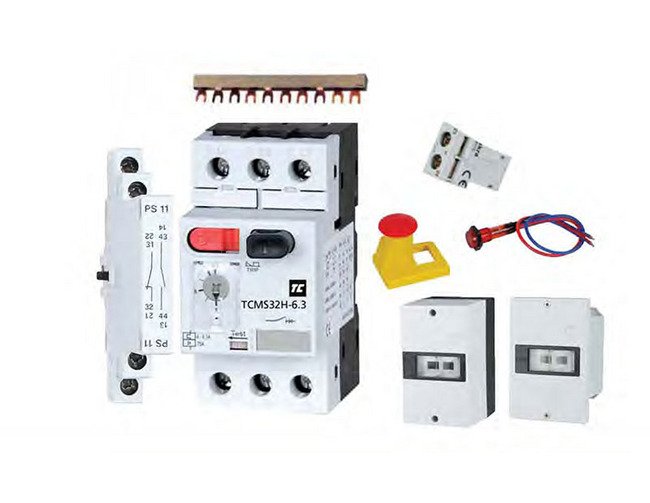

Accessories Accessories
Item #: TCHSV01Item Name: Front Mount Auxiliary SwitchContact Type: 1NCItem #: TCHSV10Item Name: Front Mount Auxiliary SwitchContact Type: 1NOItem #: TCHS11Item Name: Side Mount Auxiliary SwitchContact Type: 1NO + 1NCItem #: TCHS20Item Name: Side Mount Auxiliary SwitchContact Type: 2 NOItem #: TCHRS10Item Name: Trip Indication Contact BlockDescription: 1NO Auxiliary ContactItem #: TCHRS01Item Name: Trip Indication Contact BlockDescription: 1NC Auxiliary ContactItem #: TCMSHOItem Name: Enclosure (IP55)Description: Flush Mounted TypeItem #: TCMSFPItem Name: Enclosure (IP55)Description: Surface Mounted TypeItem #: TCES-TItem Name: Emergency Stop ButtonDescription: Red - Emergency StopItem #: TCSS1Item Name: Signal Lamp - WhiteDescription: Lamp (Available in 24V, 120V, 240V)Item #: TCSS3Item Name: Signal Lamp - GreenDescription: Lamp (Available in 24V, 120V, 240V)Item #: TCSS4Item Name: Signal Lamp - RedDescription: Lamp (Available in 24V, 120V, 240V)Item #:TCMSURItem Name: Voltage ReleasesDescription: Under Voltage Release (24-600 VAC)Item #:TCMSARItem Name: Voltage ReleasesDescription: Short Release (24-600 VAC)
Additional Information Additional Information
Main application field : control (start-up, protection and switch-off) of A.C. electric motors with power up to 11 kW (380/400 V) or other consumers up to 25 A; it can also be used as the main switch according to EN 60204 standardsNumerous accessories make the application field wider and enable the fulfillment of the majority of user's demands
Auxiliary Circuit Data Electrical Rating According To Internatio
0.1 A
Auxiliary Circuit Data Rated Insulation Voltage For Front Auxili
300 V
Auxiliary Circuit Data Rated Insulation Voltage For Side Auxilia
500 V
Auxiliary Circuit Data Terminal Capacity For Front Auxiliary Con
0.75 to 2.5 mm²
Auxiliary Circuit Data Terminal Capacity For Side Auxiliary Cont
0.75 to 2.5 mm²
Auxiliary Circuit Data Thermal Current Ith For Front Auxiliary C
1 A
Auxiliary Circuit Data Thermal Current Ith For Side Auxiliary Co
5 A
Auxiliary Circuit Data Tightning Torque For Front Auxiliary Cont
1 N·m
Auxiliary Circuit Data Tightning Torque For Side Auxiliary Conta
1 N·m
Auxiliary Circuit Data Uvtshunt Release Control Voltage
24 to 600 V
Auxiliary Circuit Data Uvtshunt Release Rated Frequency
50 Hz | 60 Hz
Auxiliary Circuit Data Uvtshunt Release Terminal Capacity
0.75 to 2.5 mm²
Auxiliary Circuit Data Uvtshunt Release Tightning Torque
1 N·m

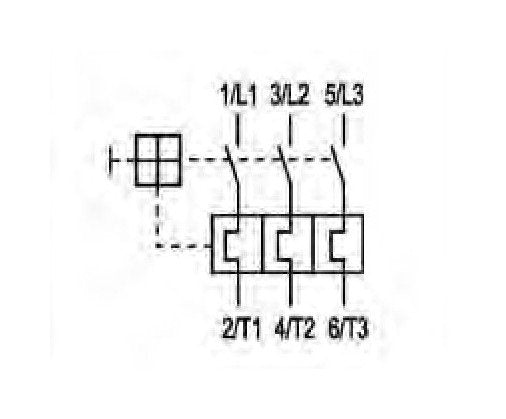

Main Circuit Designation Of Connection Terminals
1-L1 | 2-T1 | 3-L2 | 4-T2 | 5-L3 | 6-T3
Main Circuit Flexible Terminal Capacity
0.75 to 6 mm²
Main Circuit Maximum Operational Voltage Ue
690 V
Main Circuit Number Of Poles
3
Main Circuit Operating Current Of Magnetic Overload Release
11 In < 1 = 13 In ± 20 % (In = Upper Setting Limit)
Main Circuit Operating Current Of Thermal Overload Release
1.05 Ir < 1 = 1.20 Ir (Ir = Set Values)
Main Circuit Power Dissipation On Pole At Load Within
2 to 2.5 W
Main Circuit Rigid Terminal Capacity
0.75 to 10 mm²
Main Circuit Screw
Protected Against Falling Out | With Self Lifiting Clamp
Main Circuit Screw Head
PZ2
Main Circuit Sensitivity To Phase Failure
Yes
Main Circuit Setting Current Range
0.1 to 0.16 A
Main Circuit Tightning Torque
2.0 N·m
Main Circuit Trip Class According To International Electrotechni
10
Main Circuit Utilization Category According To International Ele
AC-3
Note Note
TCMS32 Motor protection switches, rated ultimate short-circuit breaking capacity Iâ and max back-up fuses f protective short-circuit Iâ exceeds Iâ
