Shamrock Controls 0.63-1A Overload Relay
Shamrock Controls 0.63-1A Overload Relay
SKU:REL-964dbc
Protect motors from overload with the Shamrock Controls 0.63-1A Relay. Built-in single-phase protection, easy reset, and versatile compatibility make it an essential choice in motor management.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Shamrock Controls 0.63-1A Overload Relay
$89.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 0.63-1A Overload Relay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

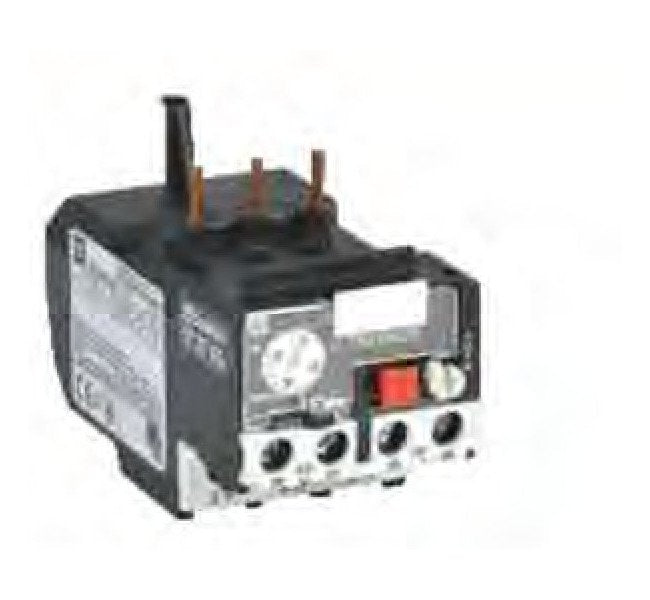

The Shamrock Controls 0.63 to 1 Ampere Overload Relay offers robust protection against single phasing, phase loss, and operation overload. With a selectable range for single-phase or three-phase operations, this relay ensures reliable motor power management. It features built-in single-phase protection, potention-free contacts, a yellow flag indicator for potential tripping, manual reset, and IP20 finger-touch proof design. Compatible with various auxiliary accessories, this relay is a versatile solution for industrial applications.
Product Specifications
Accessories Accessories

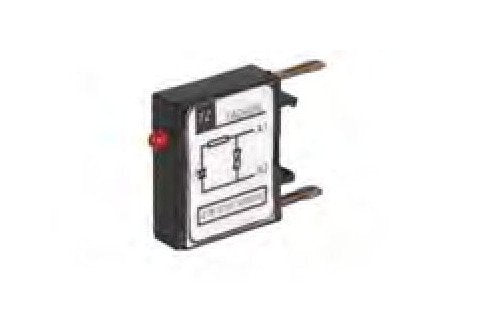

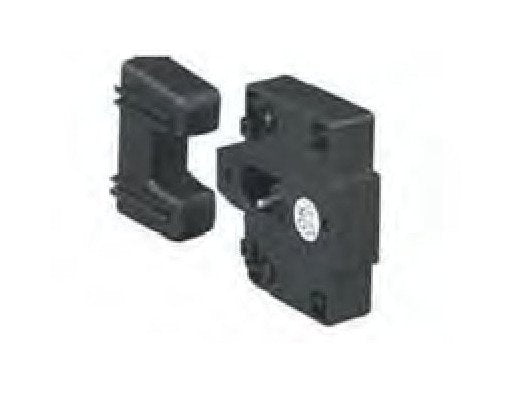

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
0.63 to 1 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
0.55 kW
