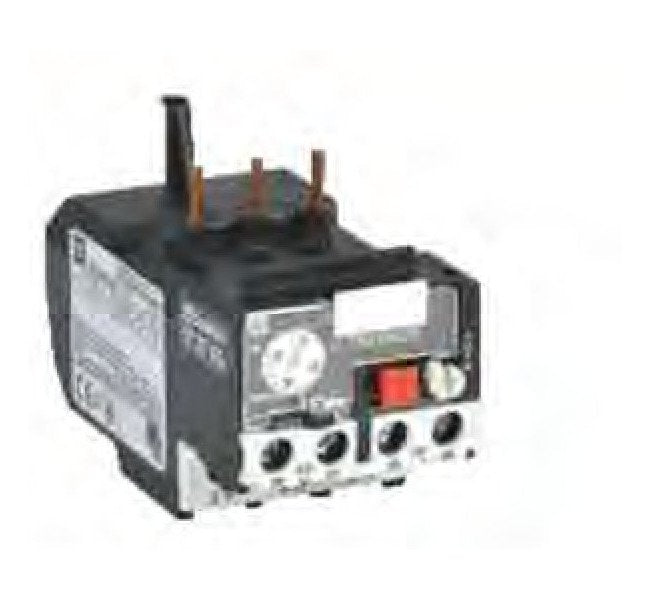

Shamrock Controls 1.6-2.5A 3-Phase Overload Relay
Shamrock Controls 1.6-2.5A 3-Phase Overload Relay
SKU:REL-76b6c4
Get reliable motor protection with Shamrock Controls 1.6-2.5A 3-Phase Overload Relay. Selectable overload range for versatile use and built-in safety features for reliable operation.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Shamrock Controls 1.6-2.5A 3-Phase Overload Relay
$89.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 1.6-2.5A 3-Phase Overload Relay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 1.6 to 2.5 Ampere 3-Phase Overload Relay offers advanced protection against operation overload, single phasing, or phase loss. It features a selectable overload range for single phase or three-phase operations. With built-in single-phase protection, potention free contacts, and various indicator flags, this relay ensures reliable motor safety. Additionally, it provides IP20 finger touch-proof protection. Ideal for industrial applications requiring precise motor control and protection.
Product Specifications
Accessories Accessories

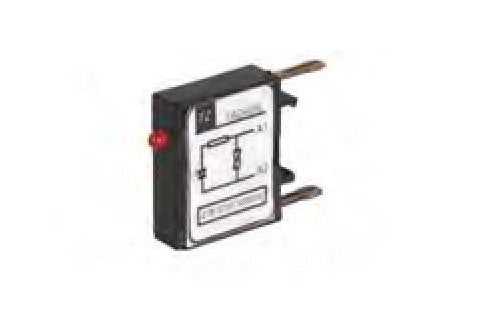

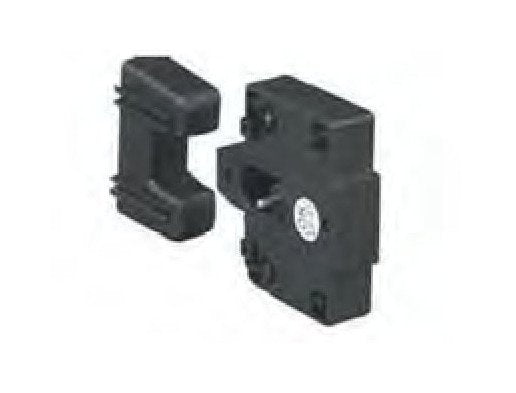

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
1.6 to 2.5 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
1.5 kW
