The Shamrock Controls 115 Ampere 3 Pole Contactor is a reliable solution for electrical applications requiring maximum inductive alternating current handling. This F-Range contactor boasts a robust construction with a rated insulation voltage of 1500V and conforms to a multitude of industry standards including BSEN80947, IEC60947-1, IEC60947-4, and more. Approved by CSA, IEC, and UL, this contactor features a standard version protective treatment, operating effectively in ambient air temperatures ranging from -60 to +80°C.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.28 V·A
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m

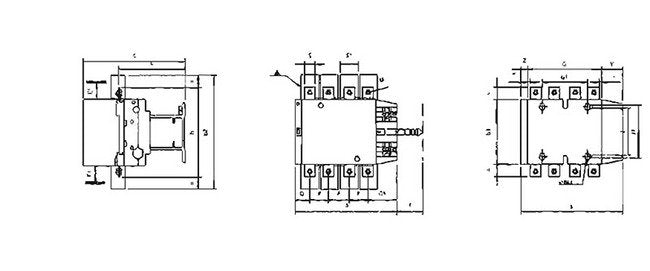

Dimensions Diameter
M6
Dimensions Dimension A
163.5 mm
Dimensions Dimension B
162 mm
Dimensions Dimension B1
137 mm
Dimensions Dimension B2
265 mm
Dimensions Dimension C
172 mm
Dimensions Dimension G
105 mm
Dimensions Dimension G1
80 mm
Dimensions Dimension I
131 mm
Dimensions Dimension J
103 mm
Dimensions Dimension J1
120 mm
Dimensions Dimension L
107 mm
Dimensions Dimension M
147 mm
Dimensions Dimension P
37 mm
Dimensions Dimension Q
29.5 mm
Dimensions Dimension Q1
60 mm
Dimensions Dimension S
15 mm
Dimensions Dimension S1
27 mm
Dimensions Dimension Y
44 mm
Dimensions Dimension Z
13.5 mm
Dimensions Minimum Electrical Tolerance According To Breaking Ca
15 mm
Dimensions Minimum Electrical Tolerance According To Operating V
10 mm
Pole Characteristics Bar Size
20 x 3 mm
Pole Characteristics Bolt Diameter
8 mm²
Pole Characteristics Cable With Lug Size
95 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
30 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
40 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
75 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
100 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
6 W
