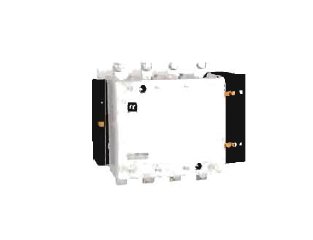

Shamrock Controls 115A F-Range 4 Pole Contactor
Shamrock Controls 115A F-Range 4 Pole Contactor
SKU:CON-458410
Reliable Shamrock Controls 115A 4 Pole AC Contactor with high-performance design, UL/CSA approved, and broad voltage range.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Shamrock Controls 115A F-Range 4 Pole Contactor
$299.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 115A F-Range 4 Pole Contactor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 115 Ampere Maximum Inductive AC Contactor is a reliable and durable solution for industrial applications. With a Maximum Resistive AC of 200A, this 4 Pole Contactor conforms to BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, and VDE0660 standards. Approved by CSA, IEC, and UL, it features a Standard Version Protective Treatment, ensuring safe operation in ambient temperatures from -60 to +80 degrees Celsius. From its Tightening Torque of 10 N·m to a Maximum Power Rating of 100hp at 600V, this contactor is designed for efficiency and longevity.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.28 V·A
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m
Control Circuit Characteristics Power Dissipation Per Pole For A
6 W
Dimensions Diameter
M6
Dimensions Dimension A
200.5 mm
Dimensions Dimension B
162 mm
Dimensions Dimension B1
137 mm
Dimensions Dimension B2
265 mm
Dimensions Dimension C
172 mm
Dimensions Dimension G
143 mm
Dimensions Dimension G1
80 mm
Dimensions Dimension I
131 mm
Dimensions Dimension J
103 mm
Dimensions Dimension J1
120 mm
Dimensions Dimension L
107 mm
Dimensions Dimension M
147 mm
Dimensions Dimension P
37 mm
Dimensions Dimension Q
29.5 mm
Dimensions Dimension Q1
60 mm
Dimensions Dimension S
15 mm
Dimensions Dimension S1
27 mm
Dimensions Dimension Y
44 mm
Dimensions Dimension Z
13.5 mm
Dimensions Minimum Electrical Tolerance According To Operating V
10 mm
Pole Characteristics Bar Size
20 x 3 mm
Pole Characteristics Bolt Diameter
8 mm²
Pole Characteristics Cable With Lug Size
95 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
30 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
40 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
75 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
100 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Minimum Electrical Tolerance According To Breakin
15 mm
