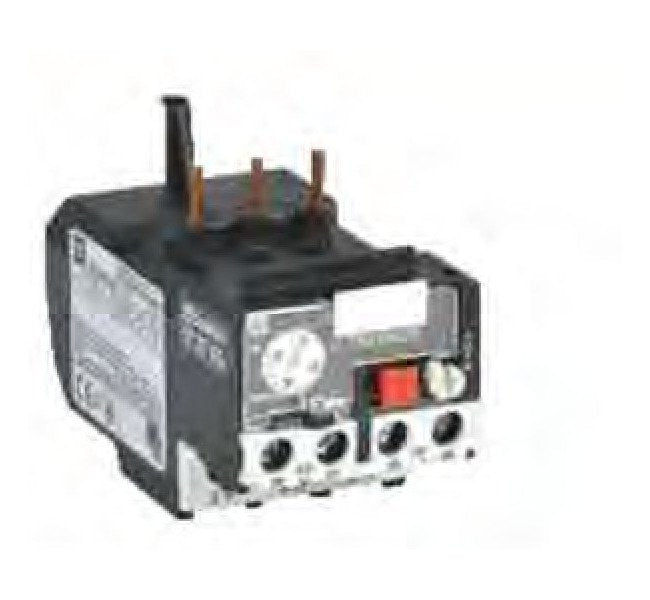

Shamrock Controls 12-18A Phase 3 Overload Relay
Shamrock Controls 12-18A Phase 3 Overload Relay
SKU:REL-63b448
Protect motors against overload and phase issues with Shamrock's 12-18A Relay. Built-in protection and versatile functionality for optimal performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Shamrock Controls 12-18A Phase 3 Overload Relay
$89.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 12-18A Phase 3 Overload Relay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 12 to 18 Ampere Overload Relay offers reliable protection against single phasing, phase loss, and operation overloads in both single-phase and three-phase systems. With a versatile relay setting range, this unit ensures optimal performance for motors rated up to 15 kW at different voltage levels. Notable features include built-in single-phase protection, 1NO and 1NC contacts, a yellow flag indicator for relay tripping alert, manual reset facility, and IP20 finger-touch proof design.
Product Specifications
Accessories Accessories

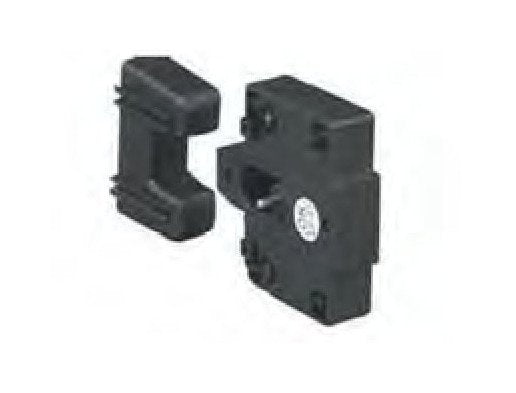

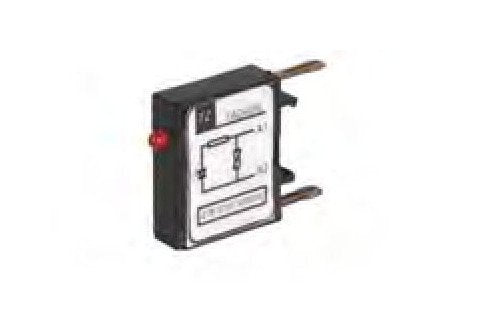

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
12 to 18 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
15 kW
