Shamrock Controls 150A Inductive AC F-Range 3 Pole Contactor
Shamrock Controls 150A Inductive AC F-Range 3 Pole Contactor
SKU:CON-f91ea2
Reliable 150A Inductive AC F-Range 3 Pole Contactor meeting top industry standards
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Shamrock Controls 150A Inductive AC F-Range 3 Pole Contactor
$299.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 150A Inductive AC F-Range 3 Pole Contactor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 150 Ampere Inductive Alternating Current (AC) F-Range 3 Pole Contactor is designed for high-performance electrical applications. With a power rating of up to 125 hp at 600 Voltage, it meets stringent BSEN80947, IEC60947-1, IEC60947-4, JEM1008, NFCEN60947, and VDE0660 standards. This UL, CSA, and IEC approved contactor offers reliable operation with a wide ambient air temperature range, making it ideal for institutional and government procurement needs.
Product Specifications
Control Circuit Characteristics Average Consumption At 20 Degree
0.28 V·A
Control Circuit Characteristics Power Circuit Connection Tighten
1.2 N·m

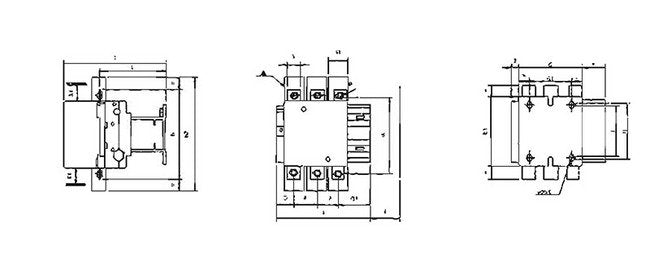

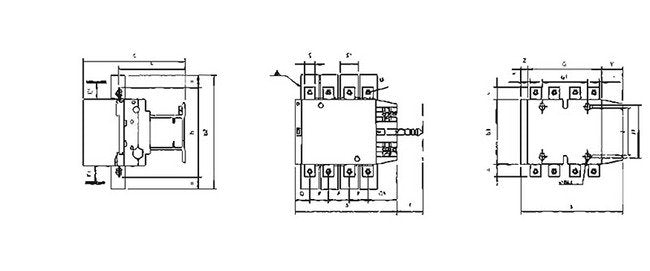

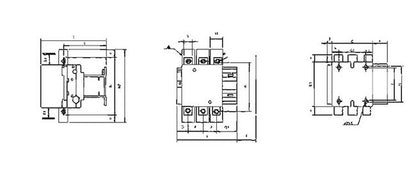

Dimensions Diameter
M8
Dimensions Dimension A
163.5 mm
Dimensions Dimension B
171 mm
Dimensions Dimension B1
137 mm
Dimensions Dimension B2
301 mm
Dimensions Dimension C
172 mm
Dimensions Dimension G
105 mm
Dimensions Dimension G1
80 mm
Dimensions Dimension I
131 mm
Dimensions Dimension J
105 mm
Dimensions Dimension J1
120 mm
Dimensions Dimension L
107 mm
Dimensions Dimension M
150 mm
Dimensions Dimension P
40 mm
Dimensions Dimension Q
26.5 mm
Dimensions Dimension Q1
57.5 mm
Dimensions Dimension S
20 mm
Dimensions Dimension S1
34 mm
Dimensions Dimension Y
44 mm
Dimensions Dimension Z
13.5 mm
Dimensions Minimum Electrical Tolerance According To Breaking Ca
15 mm
Dimensions Minimum Electrical Tolerance According To Operating V
10 mm
Pole Characteristics Bar Size
25 x 3 mm
Pole Characteristics Bolt Diameter
8 mm²
Pole Characteristics Cable With Lug Size
120 mm
Pole Characteristics Maximum Power Rating At 200 Voltage
40 hp
Pole Characteristics Maximum Power Rating At 230 Voltage
50 hp
Pole Characteristics Maximum Power Rating At 480 Voltage
100 hp
Pole Characteristics Maximum Power Rating At 600 Voltage
125 hp
Pole Characteristics Rated Insulation Voltage
1500 V
Pole Characteristics Rated Operational Voltage
0 to 1000 V
Specifications Power Dissipation Per Pole For Ac 3 The Above Ope
8 W
