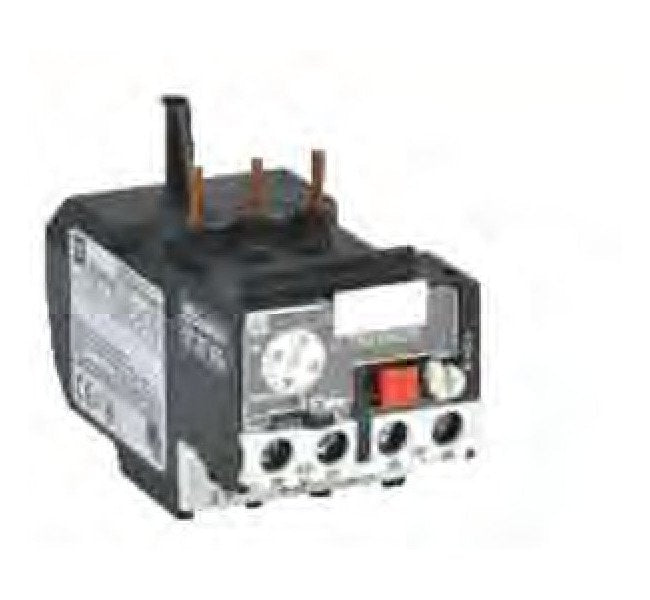

Shamrock Controls 17 to 25 Ampere Overload Relay
Shamrock Controls 17 to 25 Ampere Overload Relay
SKU:REL-6851c0
Advanced 17-25A Overload Relay with single phase protection, yellow flag indicator, and manual reset facility. Reliable motor protection.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Shamrock Controls 17 to 25 Ampere Overload Relay
$69.99
Quantity: 1
Claim Your Seller Account
Shamrock Controls 17 to 25 Ampere Overload Relay
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Shamrock Controls 17 to 25 Ampere Overload Relay offers advanced protection against operation overload, single-phasing, or phase loss. This relay is designed for both single-phase and three-phase operations, with a built-in single-phase protection feature and potention-free 1NO and 1NC contacts. It includes a yellow flag indicator for potential relay tripping, manual reset facility, and IP 20 finger touch proof design. Ideal for safeguarding motors with a standard power rating of up to 18.5 kW, this relay ensures reliable performance and peace of mind.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories

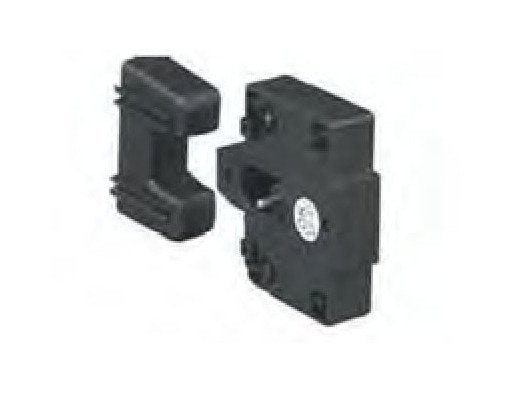

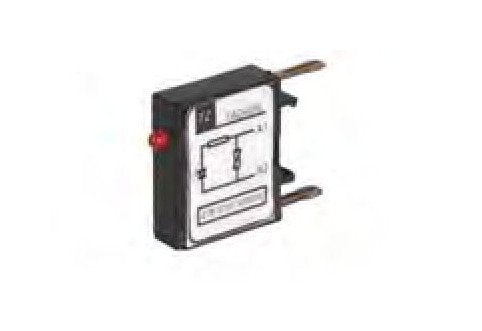

Auxiliary Contact Block (Front Mounted) TA1-DN | Auxiliary Contact Block (Side Mounted) TAB-DN | Coil Suppressor | Latch Add-on-Block (Front Mounted) LA6-DK01 | Mechanical Interlock | Off Delay Timer (Front Mounted) TA3-DR2 | On delay Star Delta Timer Block (Front Mounted) TA2-DS2 | On Delay Timer Block (Front Mounted) TA2-DT2
Features Features
Built-in single phase protectionPotention free 1NO and 1NC contactsYellow flag indicator for possible relay trippingManual reset facilityIP 20 finger touch proof
Specifications Frequency
50 Hz | 60 Hz
Specifications Phase
3
Specifications Relay Setting Range
17 to 25 A
Standard Power Rating Of 3 Phase Motors 5060 Hertz Hz Acs Catego
18.5 kW
